Specifications

Product Type	Rigid Ball Head Cap
Brand	DEHN
Series	Phase Connecting Elements for Overhead Lines
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables
Connection Type	25 mm Fixed Ball Point
Max. Short Circuit Current	42000 A
Rated Cross-Section	16-150 sq-mm
Suitable For	25 to 120 sq-mm Cables
Fixed Ball Point Diameter	25 mm
Rated Current	42000 A
Cable Cross Section	16 to 150 mm2
Material	Copper alloy/gal Sn, St/gal Zn
Depth	4 mm
Height	20 mm
Weight	719 g
Width	8 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

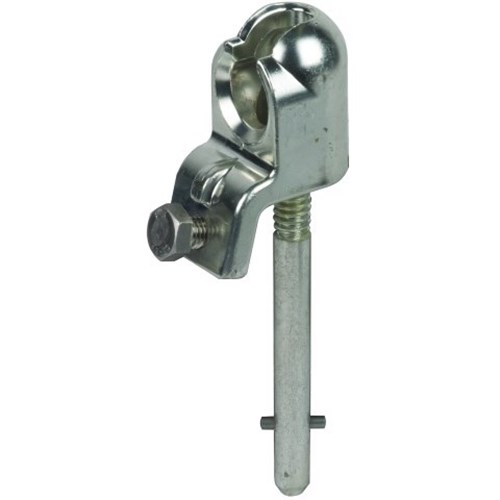

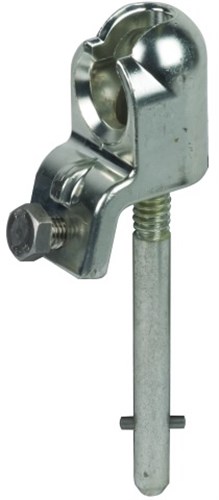

DEHN KKH25SQL Ball Head Cap 42000A 25mm Fixed Ball Point 8mm W 4mm D 20mm H Copper Alloy
