Specifications

Product Type	Two-pole surge arrester
Brand	DEHN
Series	STC module
Application	For standard Schuko socket outlets
Max. Backup Fuse	B 16 A
Max. Continuous Operating Voltage (AC/DC)	255 V AC
Suitable For	Power Supply Systems
Rated Current	3 kA
Rated Voltage	255 VAC
Nominal Voltage	230 V AC
Voltage Protection Level Up	1250 V, 1500 V
Short Circuit Current Rating	1 kA
Nominal Discharge Current Inom (8/20µs)	3 kA
No. of Poles	2
Mounting Method	Standard earthed socket outlets
Mounting Type	Wall Socket
Terminal Size	1 mm2
Depth	32 mm
Height	54 mm
Weight	0.034 kg
Width	54 mm
Operating Temperature	-25 to 40 degC
IP Rating	IP20
Standards and Approvals	EN 61643-11

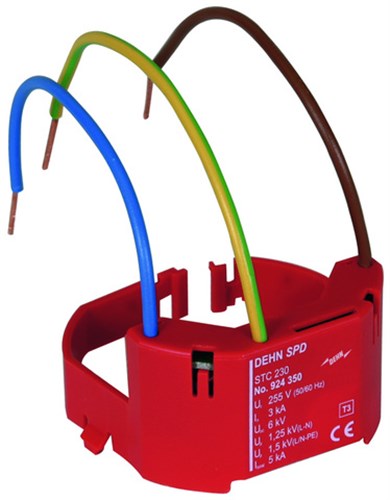

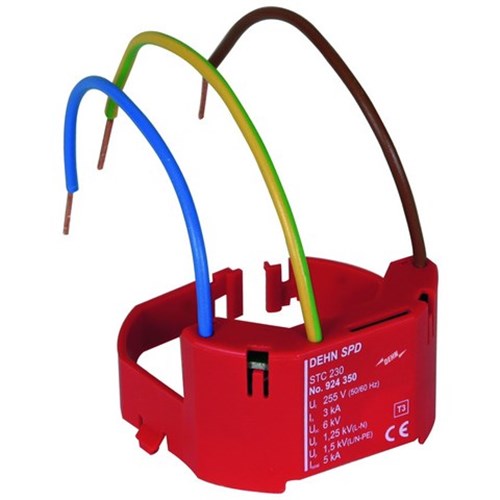

DEHN STC230 Surge Protection Module 2-P 3kA 255VAC Wall Socket Mount IP20
