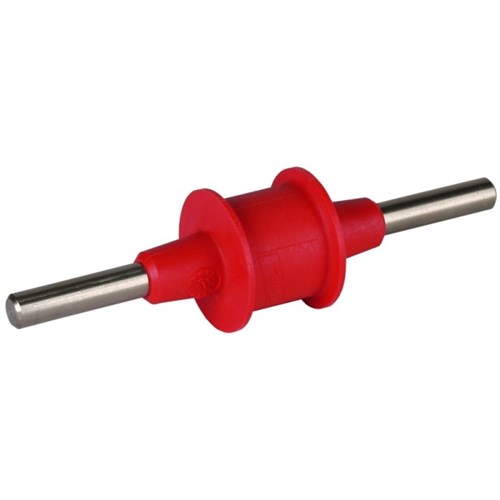

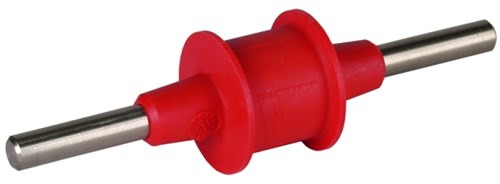

DEHN TFS Isolating Spark Gap 100kA 10mm Round Connector 160mm L 5mm W 16mm H Steel IP65

Product Code: TFS

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Isolating Spark Gap
Brand DEHN
Connection Type 10 mm Round Connector
Lightning Impulse Current Iimp (10/350µs) 100 kA
Material Steel
Depth 5 mm
Height 16 mm
Length 160 mm
Weight 0.185 kg
Width 5 mm
IP Rating IP65
Standards and Approvals IEC 62305, IEC 60364-5-54
