Specifications

Product Type	Universal Clamp with Handle
Brand	DEHN
Series	Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables.
Connection Type	20/25 mm Fixed Ball Point
Max. Short Circuit Current	33500 A
Rated Cross-Section	16-120 sq-mm
Fixed Ball Point Diameter	20 mm, 25 mm
Rated Current	33501 A, 23700 A
Cable Cross Section	16 to 120 mm2
Clamping Range	20 mm
Material	Copper alloy/gal Sn, St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel
Depth	69 mm
Height	229 mm
Weight	771.6 g
Width	35 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

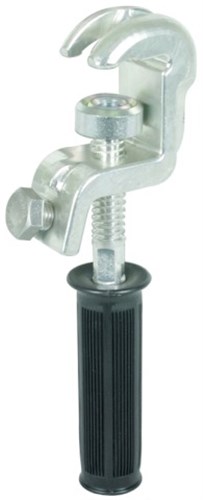

DEHN UEK25HG Universal Earthing Clamp W/Handle 20mm 20/25mm Fixed Ball Point Copper Alloy
