Specifications

Product Type	Universal Earthing Clamp With Wing Screw
Brand	DEHN
Clamping Range	30 mm
Ambient Temperature	-25 to 55 deg C
Connection Type	25/30 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	74 mm
Height	164 mm
Material	Copper Alloy
Rated Current	33503 A, 23700 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Weight	0.78 kg
Width	40 mm

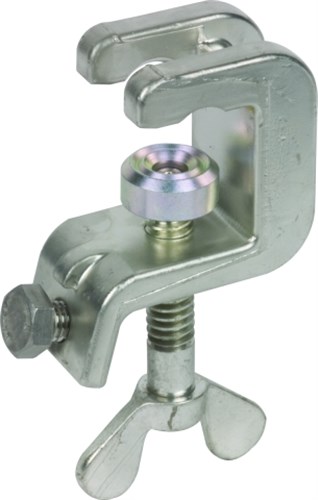

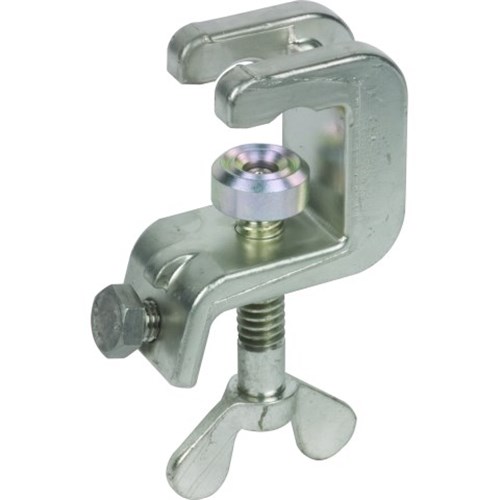

DEHN UEK30FS Universal Earthing Clamp W/Wing Screw 30mm 25/30mm Fixed Ball Point Copper Alloy
