Specifications

Product Type	Universal Clamp, T Pin Shaft
Brand	DEHN
Series	Phase Connecting Elements for Switchgear Installations
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables
Connection Type	20/25 mm Fixed Ball Point
Max. Short Circuit Current	33500 A
Rated Cross-Section	16-120 sq-mm
Fixed Ball Point Diameter	20 mm, 25 mm
Rated Current	33.5 A, 23.7 A
Cable Cross Section	16 to 120 mm2
Clamping Range	10 mm, 5 mm
Material	Copper alloy/gal Sn, St/gal Zn
Depth	69 mm
Height	175 mm
Weight	660.6 g
Width	35 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

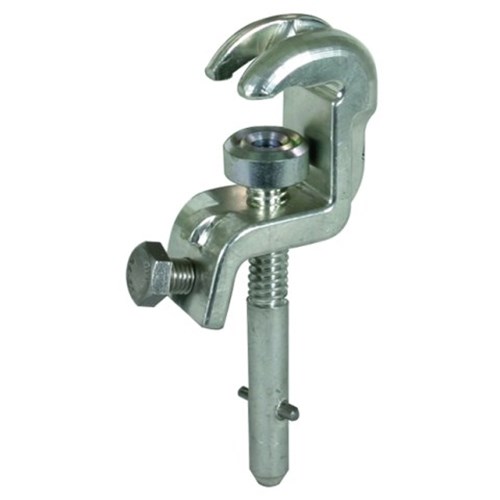

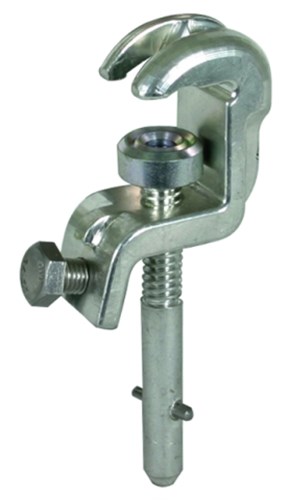

DEHN UK25SQ Universal Clamp W/T-Pin Shaft 10mm 5mm 20/25mm Fixed Ball Point Copper Alloy
