Specifications

Product Type	Universal Clamp
Brand	DEHN
Series	Phase Connecting Elements for Overhead Lines
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables
Connection Type	20/25 mm Fixed Ball Point
Max. Short Circuit Current	33500 A
Rated Cross-Section	16-120 sq-mm
Fixed Ball Point Diameter	20 mm, 25 mm
Rated Current	33.5 A, 23.7 A
Cable Cross Section	16 to 120 mm2
Clamping Range	20 mm
Material	St/gal Zn, Copper alloy/gal Sn
Depth	69 mm
Height	214 mm
Weight	713.5 g
Width	35 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

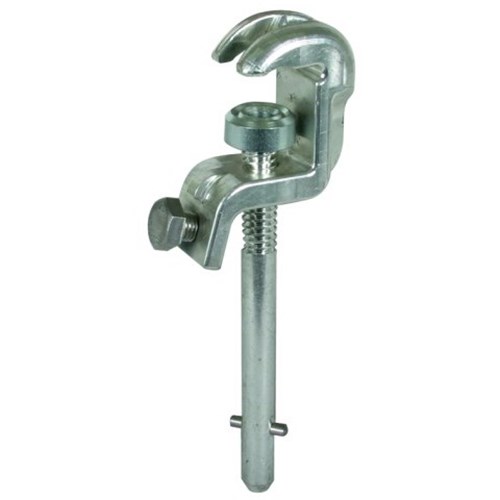

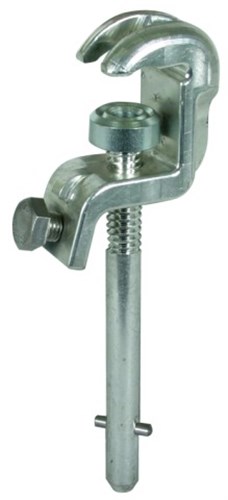

DEHN UK25SQL Universal Clamp W/T-Pin Shaft 20mm 20/25mm Fixed Ball Point Copper Alloy
