Specifications

Product Type	Analog Input Module
Brand	Emerson
Series	Rx3i
Development Software	PAC Machine Edition
Analog Resolution	12 bits
Channel Isolation	250 V AC continuous, 1500 V AC for 1 minute
Digital Inputs	0
Digital Outputs	0
Analog Outputs	0
Input Ratings	1 to 20 mA, 4 to 20 mA 4 to 20 mA Enhanced
Input Type	Single Analog Current
Power Consumption	0.6 W (Backplane) 1.56 W (Isolated)
Supply Voltage	5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type	Screw Terminal
Analog Inputs	16 Ch
Housing Material	Plastic
Mounting Method	On Panel/ DIN Rail
Depth	140 mm
Height	145 mm
Width	34 mm
Conformal Coating	Yes
Storage Temperature	0°C to 60°C
Operating Temperature	-40°C to 60°C
IP Rating	IP20
Hazardous Location Ratings	UL HAZLOC, Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Compliance Standards	UL

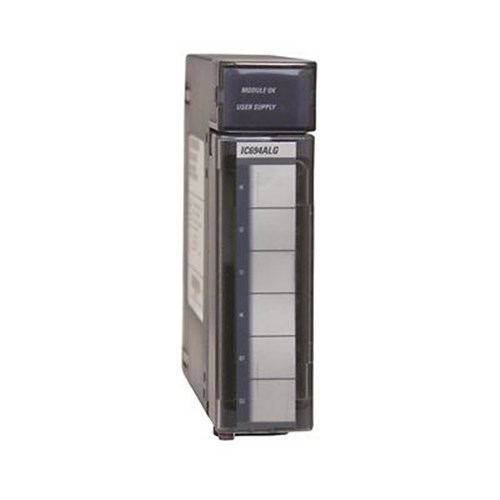

Emerson IC694ALG223CA Analog Input Module
