Specifications

Product Type	Universal Analog Input Module
Brand	Emerson
Series	RX3i
Development Software	PAC Machine Edition
Analog Resolution	11 to 16 bit
Channel Isolation	12.5 V DC channel-to-channel, 250 V AC continuous group-to-group and field-to-backplane, 1500 V AC for 60 seconds group-to-group and field-to-backplane
Digital Inputs	0
Digital Outputs	0
Analog Outputs	0
Input Ratings	-10 to 10 V DC, 0 to 10 V DC, 0 to 5 V DC, 1 to 5 V DC, -50 to 50 mV, -150 to 150 mV, -20 to 20 mA, 0 to 20 mA, 4 to 20 mA, 0 to 250 O, 0 to 500 O, 0 to 1000 O, 0 to 2000 O, 0 to 3000 O, 0 to 4000 O, RTD Pt385, Pt3916, Ni618, Ni672, NiFe518, Cu426, Thermocouple B, C, E, J, K, N, R, S, T
Input Type	Voltage, current, resistance, RTD, or thermocouple
Power Consumption	5.4 W
Supply Voltage	3.3 V DC, 5 V DC
Terminal Type	Box-style, extended box-style, spring-style, or extended spring-style terminal block
Analog Inputs	8
Mounting Method	RX3i Universal Backplane
Depth	140 mm
Height	145 mm
Width	34 mm
Conformal Coating	Yes
Storage Temperature	-40 to 85 °C
Operating Temperature	0 to 60 °C
IP Rating	IP20
Hazardous Location Ratings	Class I Div 2, ATEX Zone 2
Compliance Standards	UL, CE

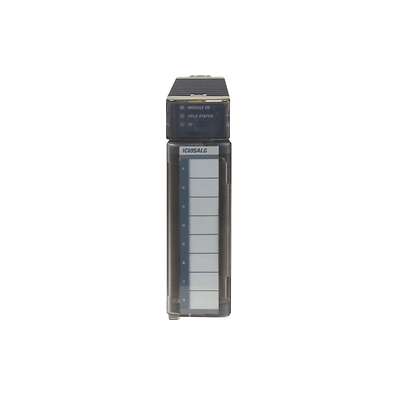

Emerson IC695ALG600CA Analog Input Module 10VDC
