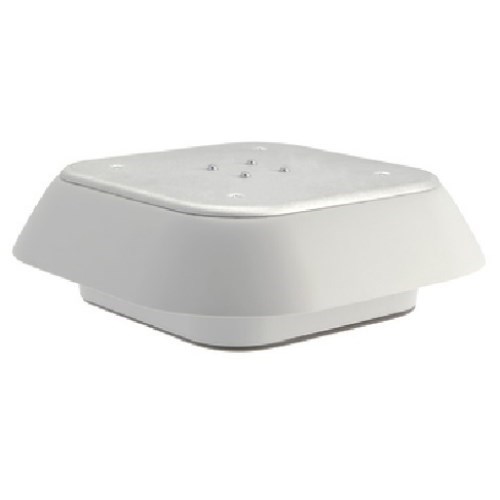

Fandis TP19U230B Roof Exhaust Unit 505cu-m/h 553cu-m/h 230VAC 24 to 250VDC IP24 324W 324H RAL7035 Light Grey

Product Code: TP19U230B

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Exhaust unit
Brand Fandis
Series TP
Rated Current 0.30/0.37 A
Rated Frequency 50/60 Hz
Rated Power 69/88 W
Rated Voltage 230 V AC
Cable Cross Section 16-12 AWG
Colour RAL 7035
Max. Airflow 505/553 m³/h 297/325 CFM
Depth 94 mm
Height 324 mm
Width 324 mm
Noise Level 67.9/71 dB(A)
Operating Temperature -10 - 60 °C
IP Rating IP24
Standards and Approvals CE; UKCA

Documents

IPD Product Catalogue V17
FANDIS Datasheet
Instructions

Certificate

Certificate of Compliance
EU Declaration of Conformity
