Specifications

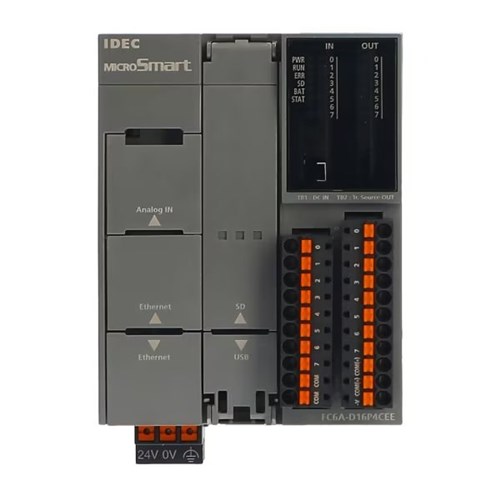

Product Type	CPU Module
Brand	IDEC
Series	FC6A MicroSmart PLC
Development Software	Automation Organizer / WindLDR
Analog Resolution	12 bits
Digital Inputs	8
Digital Outputs	8
Output Ratings	240V AC 2A, 30V DC 2A
Input Ratings	24V DC; 5mA/pt (high speed), 7mA/pt (normal speed)
Input Type	24V DC Sink/Source
Output Type	Relay
Power Consumption	2.88W
Supply Voltage	24VDC
Terminal Type	Push-in Terminals
Analog Inputs	1
Mounting Method	DIN Rail/Panel
Depth	73.0 mm
Height	90.0 mm
Width	70.0 mm
Storage Temperature	-25 to +70°C
Operating Temperature	-25 to 65?
IP Rating	IP20
Ethernet Port Speed	10/100 Mbps
Ethernet Ports	2
Expandable Communications	Yes
USB Port	1
Supported Ethernet Protocols	Modbus TCP
Supported Serial Protocols	Modbus RTU
Hazardous Location Ratings	Class I Division 2
Compliance Standards	CE, UL, TUV
