Specifications

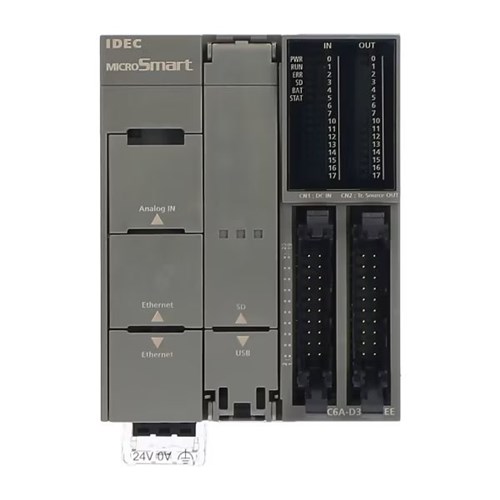

Product Type	32-I/O Plus CPU Module
Brand	IDEC
Series	MicroSmart FC6A
Development Software	WindLDR
Analog Resolution	12 bit
Digital Inputs	16
Digital Outputs	16
Output Ratings	0.1 A per point at 24 V DC
Analog Outputs	0
Input Ratings	Digital: 24 V DC sink/source; analog: 0 to 10 V DC
Input Type	Digital sink/source, analog voltage
Output Type	Transistor source
Power Consumption	3.36 W
Supply Voltage	24 V DC
Terminal Type	MIL connector
Analog Inputs	1
Mounting Method	DIN rail or panel
Depth	73 mm
Height	90 mm
Width	114.3 mm
Storage Temperature	-25 to 70 °C
Operating Temperature	-25 to 65 °C
IP Rating	IP20
Ethernet Port Speed	10/100 Mbit/s
Ethernet Ports	2
Expandable Communications	Yes
Fieldbus Interface	Ethernet
Serial Ports	0
USB Port	1
Supported Ethernet Protocols	EtherNet/IP, MQTT Sparkplug B, Modbus TCP, BACnet/IP
Supported Serial Protocols	Modbus RTU
Hazardous Location Ratings	Class I Div 2
Compliance Standards	CE, UL, TÜV
