Specifications

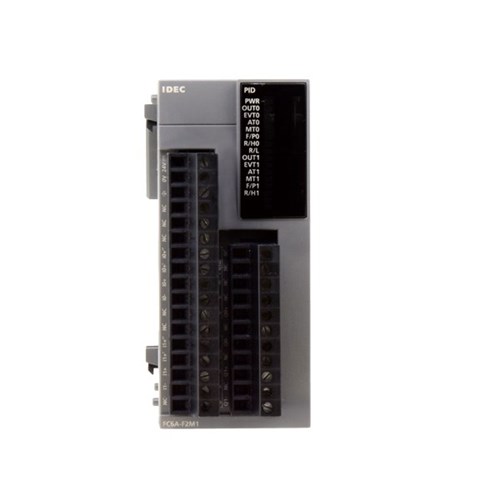

Product Type	Expansion Module
Brand	IDEC
Series	FC6A MicroSmart PLC
Development Software	Automation Organizer / WindLDR
Analog Resolution	1000 steps, 12000 increments
Channel Isolation	Photocoupler-isolated
No. of Analog Inputs	2
No. of Analog Outputs	2
Output Ratings	Non-contact voltage: 12V DC ±15%, 40 mA maximum; Analog current: 4 to 20 mA DC, 550O maximum load resistance
Analog Outputs	2
Input Ratings	hermocouple (external resistance 100O max), Resistance Thermometer (3-wire type), Current (input impedance 50O), and Voltage (input impedance 100kO to 1MO minimum depending on range)
Input Type	Thermocouple (K, J, R, S, B, E, T, N, PL-II, C), Resistance Thermometer (Pt100, JPt100), Current (0 to 20 mA DC, 4 to 20 mA DC), and Voltage (0 to 1V DC, 0 to 5V DC, 1 to 5V DC, 0 to 10V DC)
Output Type	Non-contact voltage output (for SSR drive) or Analog current output (4 to 20 mA DC)
Power Consumption	3.6W
Supply Voltage	24V DC (External power), 5V DC (Internal power)
Terminal Type	Screw Terminals
Analog Inputs	2
Mounting Method	DIN Rail/Panel
Depth	73.0 mm
Height	90.0 mm
Width	39.2 mm
Storage Temperature	-25 to +70°C
Operating Temperature	-25 to 65?
IP Rating	IP20
Hazardous Location Ratings	Class I Division 2
Compliance Standards	CE, UL, TUV
