Specifications

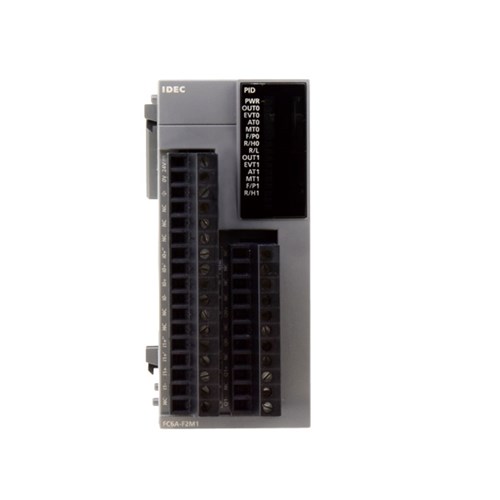

Product Type	Expansion Module
Brand	IDEC
Series	FC6A MicroSmart PLC
Development Software	Automation Organizer / WindLDR
Analog Resolution	12000 increments
Channel Isolation	Photocoupler-isolated
Output Ratings	5A 250V AC/30V DC (Resistive load); 3A 250V AC (Inductive load cos ø=0.4); 3A 30V DC (Resistive load L/R=7ms)
Analog Outputs	2
Input Ratings	Thermocouple (external resistance 100O max), Resistance Thermometer (3-wire type), Current (input impedance 50O), and Voltage (input impedance 100kO to 1MO minimum depending on range)
Input Type	Thermocouple (K, J, R, S, B, E, T, N, PL-II, C), Resistance Thermometer (Pt100, JPt100), Current (0 to 20 mA DC, 4 to 20 mA DC), and Voltage (0 to 1V DC, 0 to 5V DC, 1 to 5V DC, 0 to 10V DC)
Output Type	Relay output
Power Consumption	3.6W
Supply Voltage	24V DC (External power), 5V DC (Internal power)
Terminal Type	Screw terminal
Analog Inputs	2
Mounting Method	DIN Rail/Panel
Depth	73.0 mm
Height	90.0 mm
Width	39.2 mm
Storage Temperature	-25 to +70°C
Operating Temperature	-25 to 65?
IP Rating	IP20
Hazardous Location Ratings	Class I Division 2
Compliance Standards	CE, UL, TUV
