Specifications

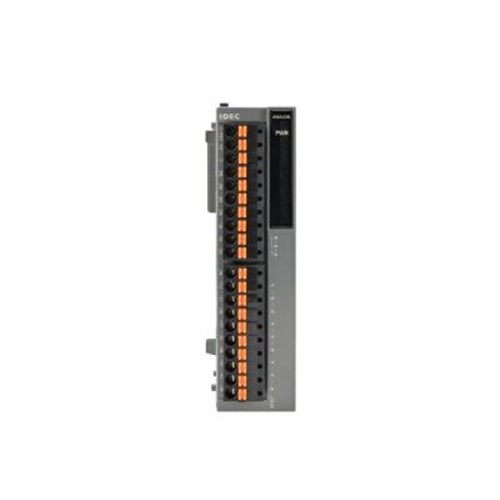

Product Type	4-Input/2-Output Voltage/Current Analog Module
Brand	IDEC
Series	MicroSmart FC6A
Analog Resolution	12 bit
Digital Inputs	0
Digital Outputs	0
Output Ratings	0 to 10 V DC, -10 to 10 V DC, 0 to 20 mA, 4 to 20 mA
Analog Outputs	2
Input Ratings	0 to 10 V DC, -10 to 10 V DC, 0 to 20 mA, 4 to 20 mA
Input Type	Voltage, current
Output Type	Voltage, current
Supply Voltage	24 V DC
Terminal Type	Push-in terminal
Analog Inputs	4
Mounting Method	DIN rail or panel
Depth	73 mm
Height	90 mm
Width	17.6 mm
Storage Temperature	-25 to 70 °C
Operating Temperature	-10 to 55 °C
IP Rating	IP20
Hazardous Location Ratings	Class I Div 2
Compliance Standards	CE, UL, TÜV
