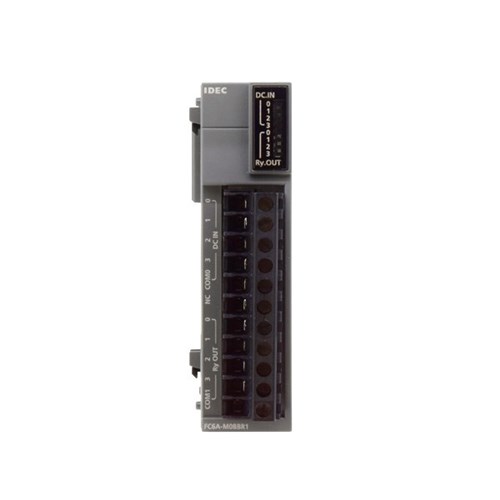

IDEC FC6A-M08BR4 Digital Input/Output Module

Product Code: FC6A-M08BR4

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Expansion Module
Brand IDEC
Series FC6A MicroSmart PLC
Development Software WindLDR
Channel Isolation Photocoupler-isolated
Digital Inputs 4
Digital Outputs 4
Output Ratings 2A per pt, 7A per common
Input Ratings 7 mA/pt
Input Type 24V DC sink/source
Output Type Relay
Power Consumption 0.80W
Supply Voltage 24V DC
Terminal Type Push-in Terminal
Mounting Method DIN Rail/Panel
Depth 73.0 mm
Height 90.0 mm
Width 17.6 mm
Operating Temperature -25 to 65?
IP Rating IP20
Hazardous Location Ratings Class I Division 2
Compliance Standards CE, UL, TUV
