Specifications

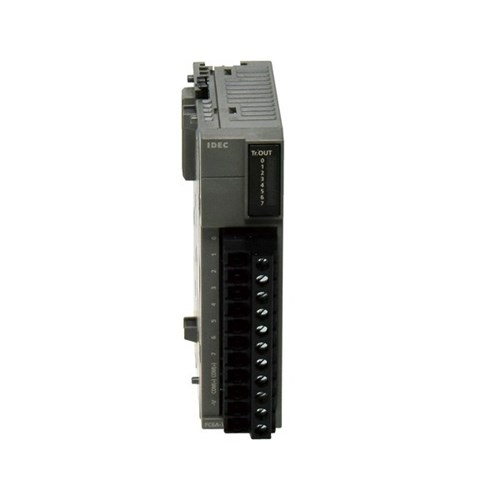

Product Type	8-Point Transistor Output Module
Brand	IDEC
Series	MicroSmart FC6A
Digital Inputs	0
Digital Outputs	8
Output Ratings	12 V DC, 24 V DC, 0.5 A per point
Analog Outputs	0
Output Type	Transistor sink
Terminal Type	Screw terminal
Analog Inputs	0
Mounting Method	DIN rail or panel
Depth	73 mm
Height	90 mm
Width	23.6 mm
Storage Temperature	-25 to 70 °C
Operating Temperature	-25 to 65 °C
IP Rating	IP20
Hazardous Location Ratings	Class I Div 2
Compliance Standards	CE, UL, TÜV
