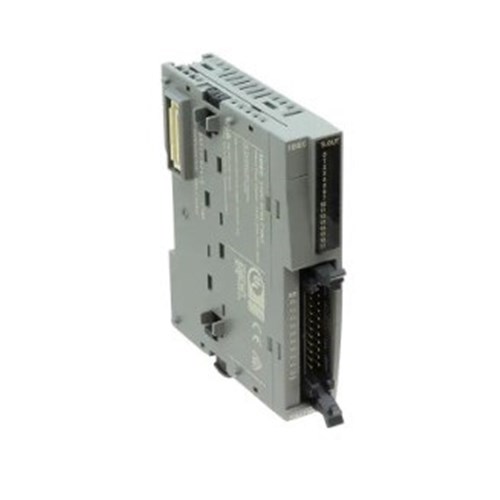

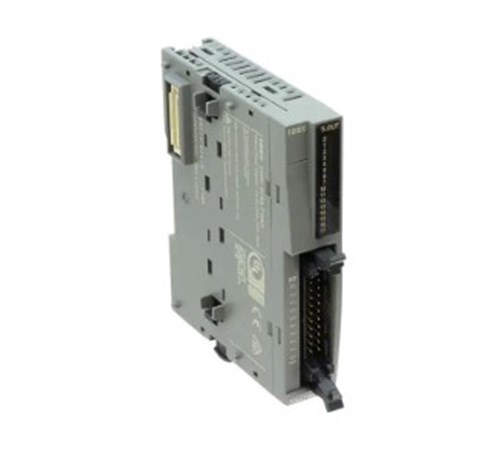

IDEC FC6A-T16K3 Digital Output Module

Product Code: FC6A-T16K3

1

Specifications

Product Type	Expansion Module
Brand	IDEC
Series	FC6A MicroSmart PLC
Digital Inputs	0
Digital Outputs	16
Output Ratings	0.5A per point, 3A
Analog Outputs	0
Output Type	Transistor Sink
Power Consumption	0.80W
Supply Voltage	24V DC
Terminal Type	MIL Terminal
Analog Inputs	0
Mounting Method	DIN rail or panel
Depth	73.0 mm
Height	90.0 mm
Width	17.6 mm
Storage Temperature	-25 to 70 °C
Operating Temperature	-25 to 65?
IP Rating	IP20
Hazardous Location Ratings	Class I Division 2
Compliance Standards	CE, UL, TUV
