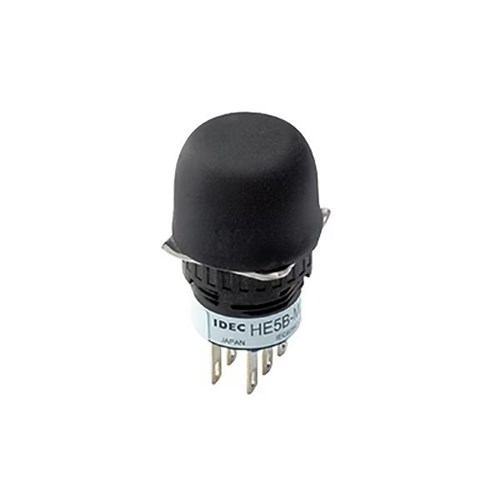

IDEC HE5B-M2PB Enabling Switch 2NO

Product Code: HE5B-M2PB

  • Compact safety switch with IP65 protection
  • Operates in temps from -25 to 60°C
  • Durable mechanical life of 1 million ops
  • Rated insulation voltage up to 125V
  • Black bezel for sleek design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Enabling Switch
Brand IDEC
Bezel Colour Black
Colour Black
Contact Configuration 2NO
Degree of Protection IP65
Humidity 45-85%
Insulation Resistance 50 MOhm
Mechanical Life 1 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 125 V
Rated Thermal Current 3 A
Shock Resistance 150 g/ms
Standards and Approvals CSA C22.2 # 14, GB/T14048.5, IEC/EN60947-5-1 UL508, IEC/EN60947-5-8
Storage Temperature -40 to 80 deg C
Terminal Type Solder
Tightening Torque 0.29-0.49 N-m
Vibration Resistance 5-55 Hz
Weight 8 g

Description

<p>When it comes to ensuring the safety and reliability of your industrial or commercial operations, selecting the right components is crucial. This Safety Switch stands out as a robust choice, designed with precision and efficiency to meet demanding environments.</p><p>Operating within a temperature range of -25 to 60 degrees Celsius, this switch maintains performance in diverse conditions. Its solder terminal type facilitates secure connections, while the tightening torque specification of 0.29-0.49 N-m ensures a firm installation without overexertion.</p><p>The device boasts an impressive IP65 degree of protection, safeguarding against dust ingress and low-pressure water jets from any direction—ideal for challenging settings where exposure to elements is a concern.</p><p>Compliance with multiple standards such as CSA C22.2 #14, GB/T14048.5, IEC/EN60947-5-1 UL508, and IEC/EN60947-5-8 underscores its adherence to international safety norms.</p><p>Weighing just 8 grams, this lightweight component doesn&amp;#39;t compromise on durability or resilience. It features vibration resistance between 5-55 Hz and can withstand shock up to 150 g/ms—a testament to its capability in high-stress environments.</p><p>The rated insulation voltage is set at 125 V with an insulation resistance of 50 MOhm, providing reliable electrical isolation for enhanced safety measures. Additionally, it supports a mechanical life of up to one million operations—ensuring longevity and reduced maintenance needs over time.</p><p>Its contact configuration includes two normally open (2NO) contacts which are pivotal for applications requiring fail-safe operational modes or redundancy setups.</p><p>Storage capabilities are equally robust; it can be safely stored in temperatures ranging from -40 to 80 degrees Celsius without compromising functionality upon deployment.</p><p>With a rated thermal current capacity of 3 A and humidity tolerance between 45% and 85%, it’s engineered for consistent performance even under fluctuating environmental conditions.</p><p>Aesthetically minimalistic yet functional, the black bezel color complements various equipment designs seamlessly while maintaining focus on utility rather than flair.</p><p>This Safety Switch represents a balance between technical specifications and practical application suitability—making it an excellent candidate for professionals seeking reliable components that align with stringent industry requirements.</p>
