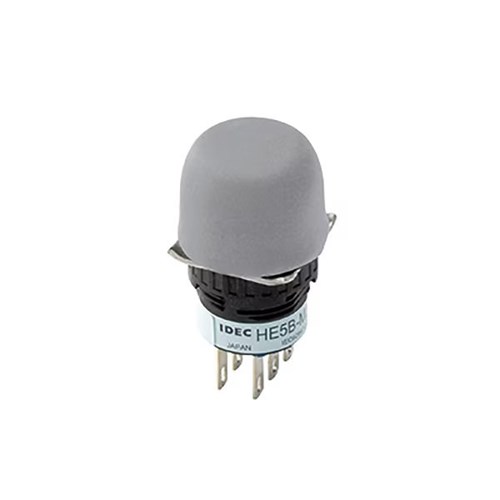

IDEC HE5B-M2PN1 Enabling Switch 2NO

Product Code: HE5B-M2PN1

  • Operates in -25 to 60°C; reliable in varied climates
  • IP65 protection for dust and water resistance
  • Endures vibrations from 5-55 Hz effectively
  • Durable with 1 million mechanical operations
  • Compliant with global safety standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Enabling Switch
Brand IDEC
Bezel Colour Grey
Colour Gray
Contact Configuration 2NO
Degree of Protection IP65
Humidity 45-85%
Insulation Resistance 50 MOhm
Mechanical Life 1 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 125 V
Rated Thermal Current 3 A
Shock Resistance 150 g/ms
Standards and Approvals CSA C22.2 # 14, GB/T14048.5, IEC/EN60947-5-1 UL508, IEC/EN60947-5-8
Storage Temperature -40 to 80 deg C
Terminal Type Solder
Tightening Torque 0.29-0.49 N-m
Vibration Resistance 5-55 Hz
Weight 8 g

Description

<p>When it comes to ensuring safety and reliability in industrial and commercial environments, selecting the right safety switch is crucial. This Safety Switch offers a robust solution designed for those who require dependable performance under varying conditions. </p><p>Operating within a temperature range of -25 to 60 degrees Celsius, this switch can withstand diverse environmental conditions while maintaining optimal functionality. The solder terminal type ensures secure connections, complemented by a tightening torque requirement of 0.29-0.49 N-m, which provides stability during operation.</p><p>The switch boasts an impressive degree of protection with an IP65 rating, indicating its resilience against dust ingress and water jets from any direction—ideal for challenging industrial settings where exposure to such elements is common.</p><p>Adhering to multiple international standards and approvals including CSA C22.2 #14, GB/T14048.5, IEC/EN60947-5-1 UL508, and IEC/EN60947-5-8, this product meets stringent safety requirements across various regions—making it a reliable choice for global applications.</p><p>Despite its lightweight design at just 8 grams, the switch does not compromise on durability or performance. It features vibration resistance from 5 to 55 Hz and shock resistance rated at 150 g/ms—ensuring longevity even in high-impact environments.</p><p>With a rated insulation voltage of 125 V and mechanical life extending up to one million operations, this safety switch promises sustained efficiency over extended use periods. Its contact configuration of 2NO (two normally open contacts) supports versatile application needs without compromising on operational integrity.</p><p>Storage capabilities are equally commendable; the device can be stored safely between temperatures ranging from -40 to 80 degrees Celsius without degradation in quality or performance readiness upon reactivation.</p><p>Rated with a thermal current capacity of up to 3 A and supporting humidity levels between 45% and 85%, this safety switch demonstrates adaptability across different climatic conditions while maintaining excellent insulation resistance at 50 MOhm.</p><p>The grey bezel color adds a neutral aesthetic that seamlessly integrates into existing systems without drawing unnecessary attention—a practical feature for installations where discretion is preferred.</p><p>In summary, this Safety Switch combines advanced engineering with practical features tailored for demanding environments—a testament to its suitability for professionals seeking reliable equipment that aligns with technical specifications required in their operations.</p>
