Specifications

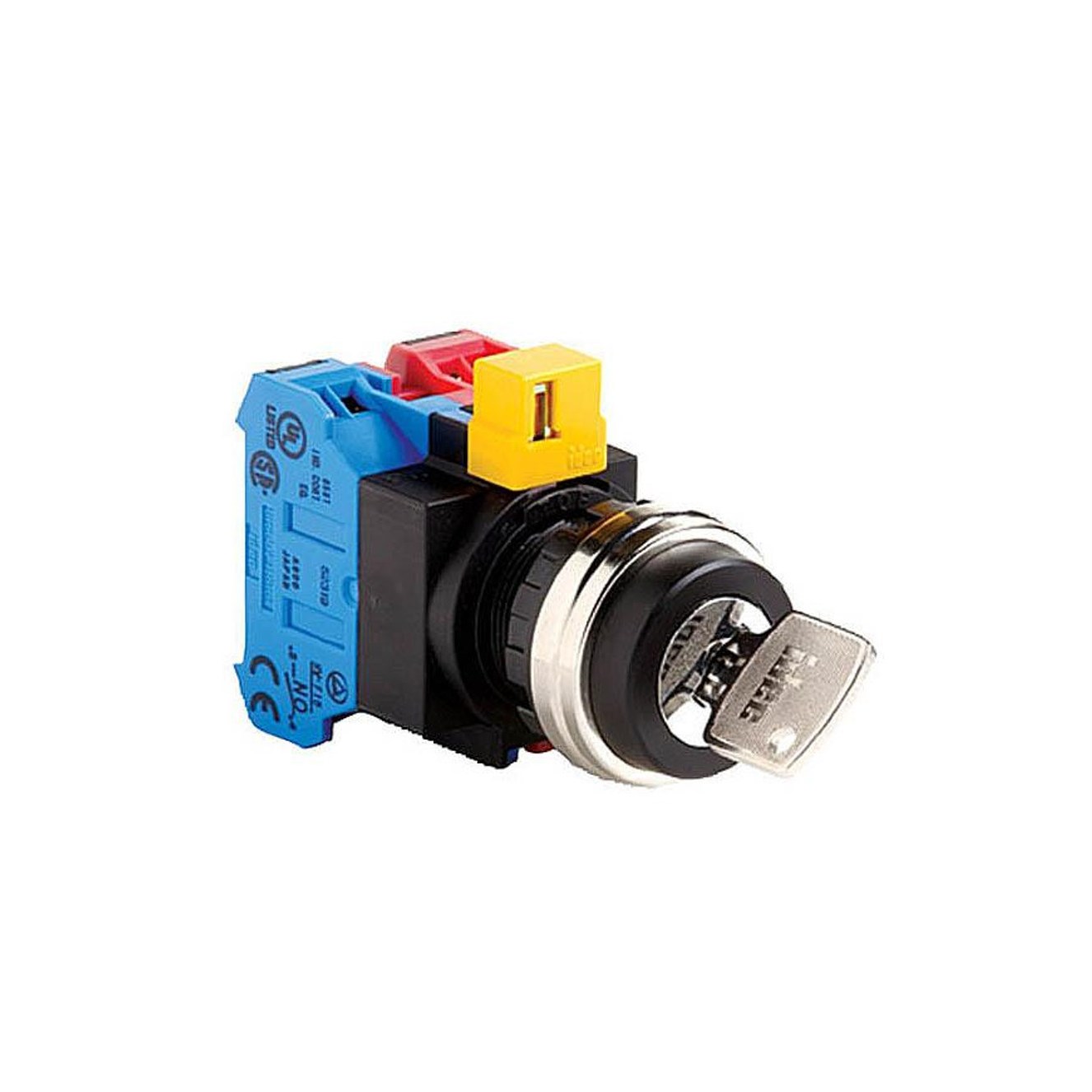

Product Type	Selector Switch
Brand	IDEC
Series	HW
Actuator Type	Key
Bezel Material	Metal
Contact Configuration	2NO
Degree of Protection	IP20, IP65
Function	Maintained
Insulation Resistance	50 MOhm
Mode of Operation	Spring Return
Mounting Hole Diameter	22 mm
Number of Positions	2
Operation Position	Right
Operational Temperature	-25 to 60 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	600 V
Standards and Approvals	CE, CSA, UL
Switch Type	Knob
Terminal Type	Screw
