Specifications

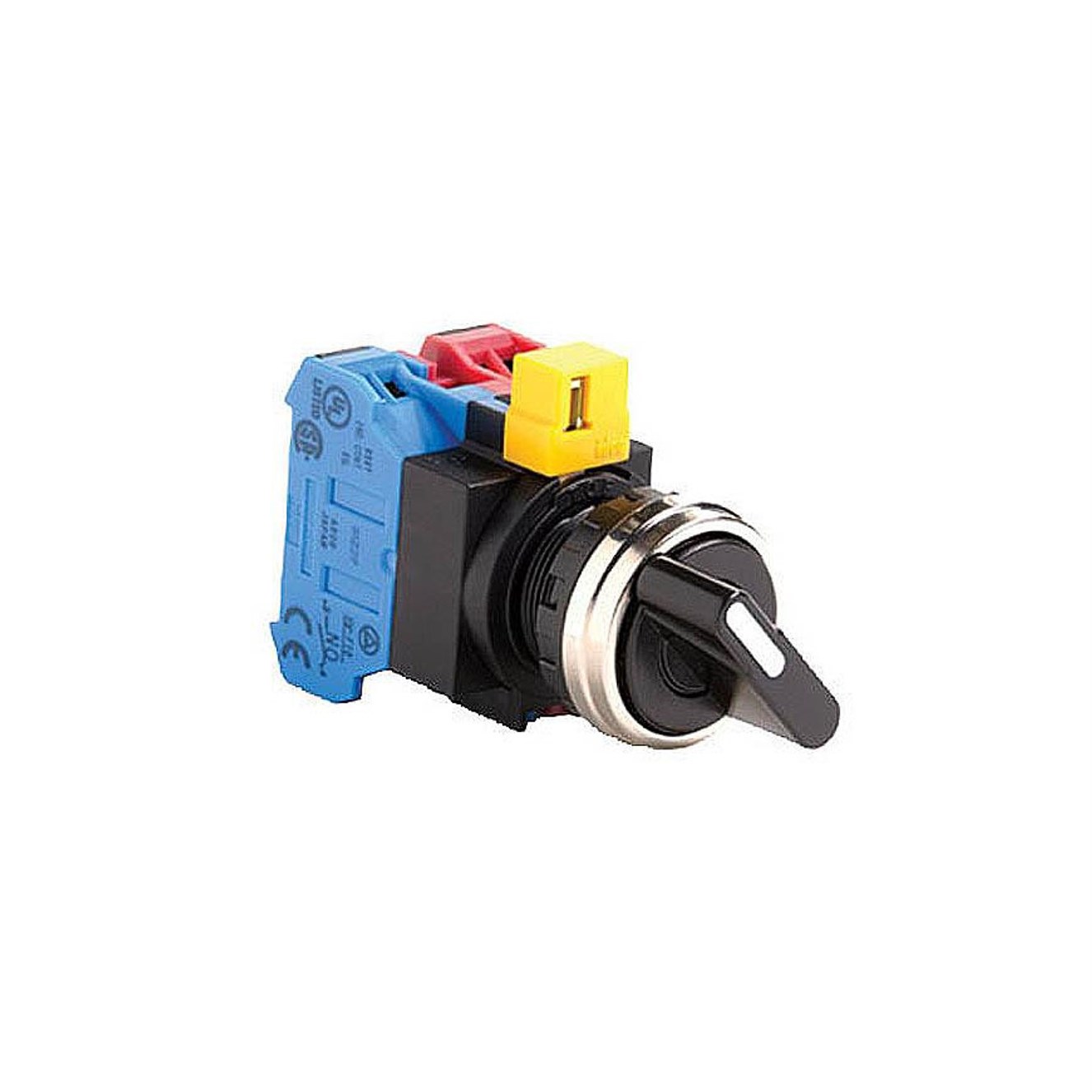

Product Type	Selector Switch
Brand	IDEC
Series	HW
Bezel Material	Metal
Contact Configuration	1NO+1NC
Degree of Protection	IP20, IP65
Function	Maintained
Illumination	Non-Illuminated
Insulation Resistance	50 MOhm
Mounting Hole Diameter	22 mm
Number of Positions	2
Operational Temperature	-25 to 60 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	600 V
Standards and Approvals	CE, CSA, UL
Switch Type	Knob
Terminal Type	Screw
