Specifications

Product Type	Power Relay
Brand	Idec
Series	RH
Electrical Endurance	200000 Operations
No. of Change-Over Contacts	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current (In)	10A
Timing Range	20 ms
Contact Configuration	SPDT
Electrical Connection	Plug-in terminal
Rated Power	0.8 W
Rated Voltage	50 VAC
Response Time	1000 ms
Mechanical Durability	50000000 Operations
Rated Voltage (Coil)	50V AC
Contact Material	Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting Type	Din Rail/Panel/PC Board
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Weight	24 g
Humidity	45-85%
Ambient Temperature	–25 to +50°C
Standards and Approvals	CE, CSA, EN, Lloyd Register, UL

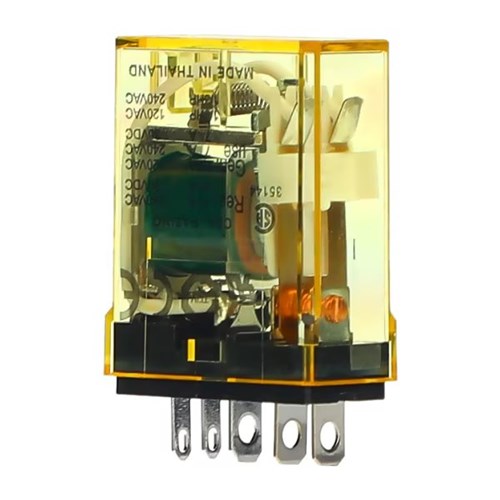

IDEC RH1B-LAC50V Power Relay SPDT 50VAC Coil
