Specifications

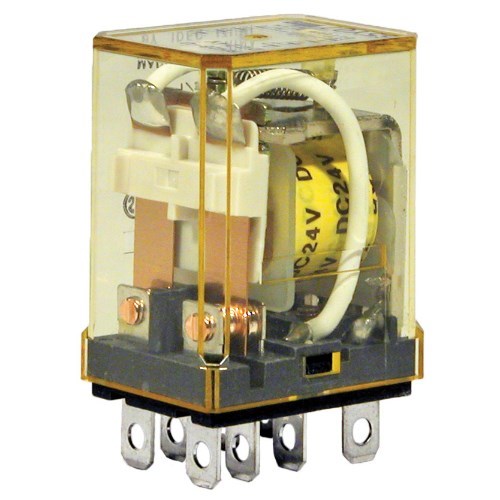

Product Type	Power Relay
Brand	Idec
Series	RH
Actuating Voltage	80% max.
Electrical Endurance	200000 Operations
No. of Change-Over Contacts	2
No. of N/C Contacts	2
No. of N/O Contacts	2
Rated Current (In)	10A
Timing Range	20 ms
Contact Configuration	DPDT
Electrical Connection	Plug-in terminal
Rated Current	10 A
Rated Voltage	240 VAC
Terminal Type	Blade
Timer Relay Type	RH2 2PDT Relay with LED indicator & check button
Mechanical Durability	50000000 Operations
With Base	SH2B-05C
Rated Voltage (Coil)	240V AC
Contact Material	Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting Type	Din Rail/Panel/PC Board
Weight	37 g
Humidity	45-85%
Operating Temperature	-25 to 40 deg C
Ambient Temperature	–25 to +40°C
Standards and Approvals	CE, CSA, RoHS
