Specifications

Number of Poles	2
Product Type	Power Relay
Brand	IDEC
Electrical Endurance	500000 Operations
Timing Range	20 ms
Contact Configuration	DPDT
Rated Current	10 A
Rated Power	0.9 W
Rated Voltage	24 VAC
Terminal Type	Blade
Response Time	1000 ms
Mechanical Durability	50000000 Operations
Contact Material	Silver Cadmium Oxide
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Weight	37 g
Humidity	45-85%
Operating Temperature	-25 to 70 deg C
Standards and Approvals	CE, CSA, RoHS

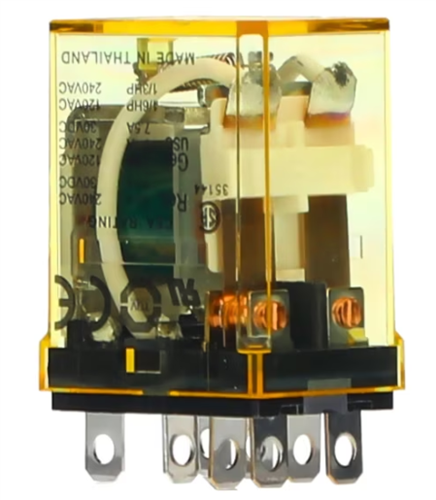

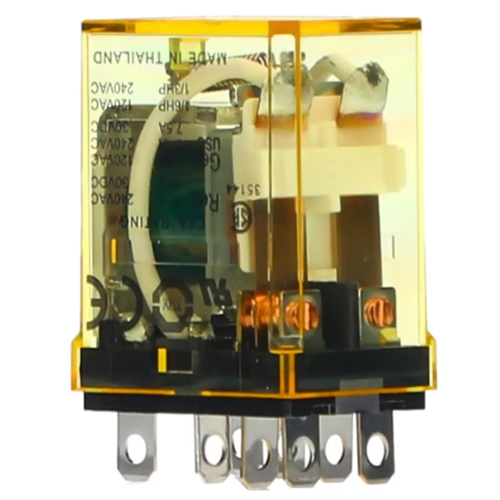

IDEC RH2B-ULC-AC24V Power Relay DPDT 24VAC Coil 10A Blade Terminal
