Specifications

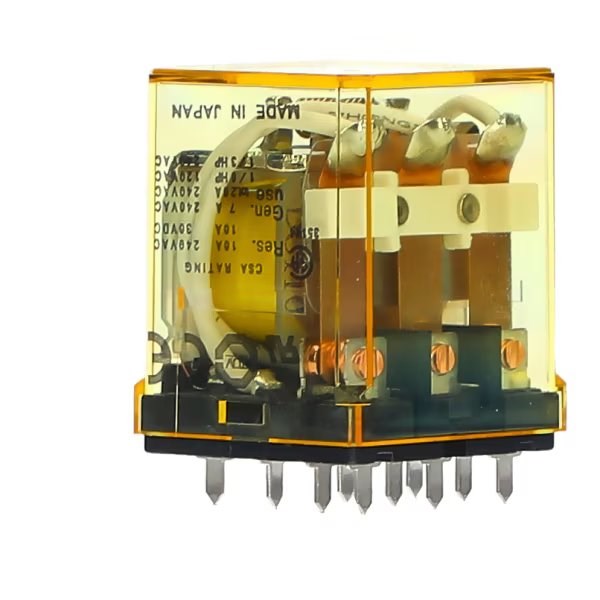

Product Type	Power Relay
Brand	Idec
Series	RH
Actuating Voltage	80% max.
Electrical Endurance	200000 Operations
No. of Change-Over Contacts	3
No. of N/C Contacts	3
No. of N/O Contacts	3
Rated Current (In)	10A
Timing Range	25 ms
Contact Configuration	3PDT
Electrical Connection	Plug-in terminal
Rated Current	60mA
Rated Power	1.5 W
Rated Voltage	24 VDC
Terminal Type	PCB
Response Time	1000 ms
Mechanical Durability	50000000 Operations
Rated Voltage (Coil)	24V DC
Contact Material	Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting Type	Din Rail/Panel/PC Board
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	27.5mm
Height	35.6mm
Weight	50 g
Width	31mm
Humidity	45-85%
Ambient Temperature	–25 to +40°C
Standards and Approvals	CE, cRuus, CSA
