Specifications

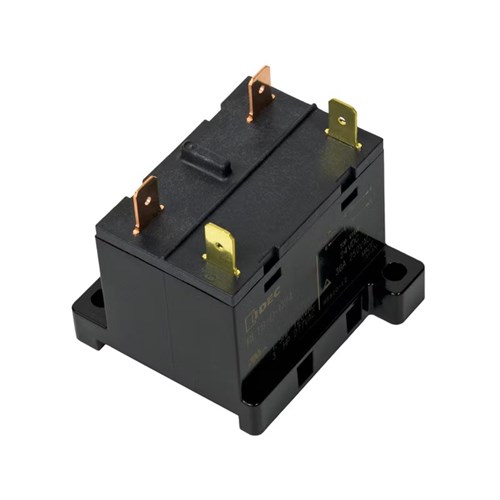

Product Type	Power Relay
Brand	IDEC
Series	RL
Actuating Voltage	160 V AC - 192 V AC
No. of N/O Contacts	2
Timing Range	30 ms
Contact Configuration	1 x (SPST, Double Make)
Electrical Connection	Quick Connect Terminal
Rated Current	30 A
Rated Power	1.7-2.5 VA
Rated Voltage	200-240 VAC
Terminal Type	Quick Connect
Response Time	1000 ms
Change-Over Contacts	SPST
Mechanical Durability	1000000 Operations
Rated Voltage (Coil)	200 V AC - 240 V AC
Contact Material	Ag Alloy
Mounting Type	DIN Rail
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	54 mm
Height	39.5 mm
Weight	90-135 g
Width	50 mm
Humidity	5-85%
Operating Temperature	-25 to +55°C
IP Rating	IP40
Standards and Approvals	CE, cRuUS, RoHS, VDE
