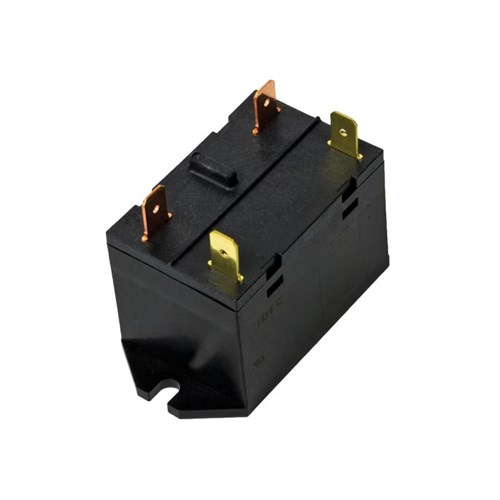

IDEC RL1B-T-D12 Power Relay 1x (SPST Double Make) 12VDC Coil 30A Quick Connect Terminal

Product Code: RL1B-T-D12

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Power Relay
Brand IDEC
Contact Configuration 1 x (SPST, Double Make)
Contact Material Ag Alloy
Degree of Protection IP40
Humidity 5-85%
Mechanical Life 1000000 Operations
Mounting Type Flange
Number of Poles 1
Operating Time 30 ms
Operational Temperature -25 to 55 deg C
Rated Current 30 A
Rated Power 1.9 W
Rated Voltage 12 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuUS, RoHS, VDE
Terminal Type Quick Connect
Vibration Resistance 10-55 Hz
Weight 90-135 g

Documents

IPD Product Catalogue V17
IDEC Brochure
IDEC Catalogue
IDEC Datasheet

Certificate

cUL_Certification
EU Declaration of Conformity
UL Certification
