Specifications

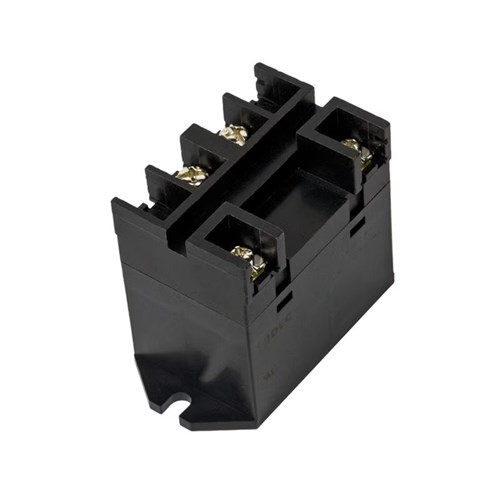

Product Type	Power Relay
Brand	IDEC
Series	RL
Actuating Voltage	19.2 V DC
No. of N/O Contacts	2
Timing Range	30 ms
Contact Configuration	1 x (SPST, Double Make)
Electrical Connection	Screw Terminal
Rated Current	30 A
Rated Power	1.9 W
Rated Voltage	24 VDC
Terminal Type	Screw
Response Time	1000 ms
Change-Over Contacts	SPST
Mechanical Durability	1000000 Operations
Rated Voltage (Coil)	24 V DC
Contact Material	Ag Alloy
Mounting Type	Flange
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	54 mm
Height	53.4 mm
Weight	90-135 g
Width	50 mm
Humidity	5-85%
Operating Temperature	-25 to +55°C
IP Rating	IP40
Standards and Approvals	CE, cRuUS, RoHS, VDE
