Specifications

Product Type	Power Relay
Brand	IDEC
Electrical Endurance	200000 Operations
Timing Range	25 ms
Contact Configuration	DPDT
Rated Current	10 A
Rated Power	1.5 W
Rated Voltage	24 VDC
Terminal Type	Pin
Response Time	100 ms
Mechanical Durability	10000000 Operations
Contact Material	Silver
Model	Basic
No. of Pins	8
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Weight	90 g
Humidity	5-85%
Operating Temperature	-25 to 40 deg C
Standards and Approvals	CE, CSA

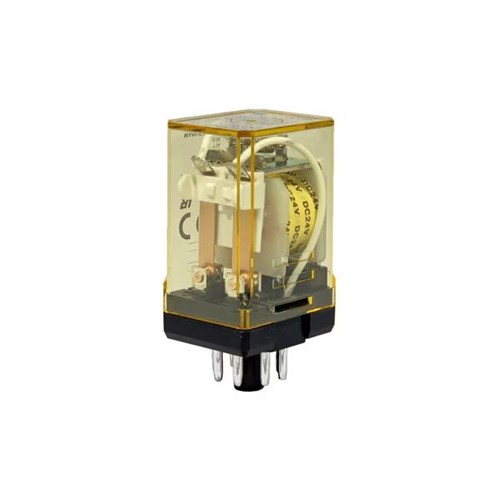

IDEC RR2P-UDC24 Power Relay DPDT 24VDC Coil 10A Pin Terminal
