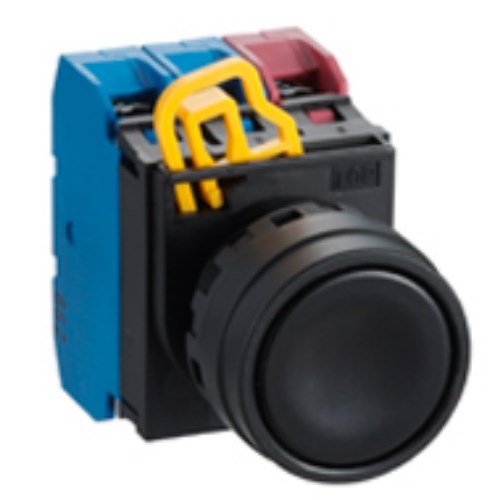

Specifications

Product Type	Pushbutton
Brand	IDEC
Series	YW
Actuator Type	Flush
Bezel Material	Plastic
Bezel Type	Plastic
Button Colour	Yellow
Colour	Yellow
Contact Configuration	1NO
Contact Material	Silver
Cutout Size	22 mm
Degree of Protection	IP65 Front, IP20 Terminal
Depth	56.8 mm
Diameter	22 mm
Function	Maintained
Height	41.4 mm
Humidity	45-85%
Illumination	Non-Illuminated
Insulation Resistance	100 MOhm
Mechanical Life	0.25 million Operations Single Contact Block, 0.1 million Operations Double Contact Block
Mode of Operation	Maintained
Operational Temperature	-20 to 55 deg C
Rated Continuous Current	10 A
Rated Insulation Voltage	600 V
Release Method	Pushlock Pull/Turn Reset
Shock Resistance	10 g/ms
Standards and Approvals	cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Vibration Resistance	5-55 Hz
Width	30 mm
