Specifications

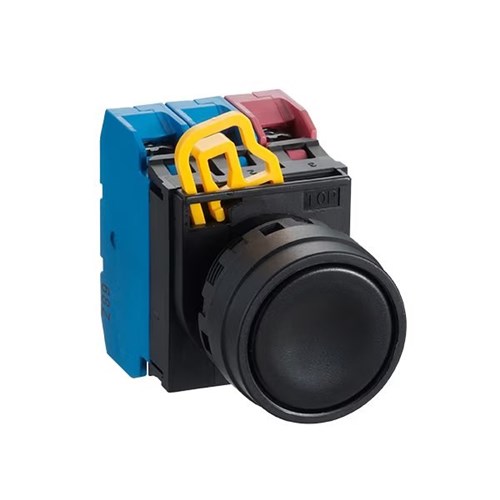

Product Type	Pushbutton
Brand	IDEC
Series	YW
Actuator Type	Flush
Bezel Material	Plastic
Button Colour	Black
Colour	Black
Contact Configuration	1NO+1NC
Contact Material	Silver
Cutout Size	22 mm
Degree of Protection	IP65 Front, IP20 Terminal
Depth	56.8 mm
Diameter	22 mm
Function	Momentary
Height	41.4 mm
Humidity	45-85%
Illumination	Non-Illuminated
Insulation Resistance	100 MOhm
Mechanical Life	5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model	Flush Momentary
Operational Temperature	-20 to 55 deg C
Rated Continuous Current	10 A
Rated Insulation Voltage	600 V
Shock Resistance	10 g/ms
Standards and Approvals	cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Vibration Resistance	5-55 Hz
Width	30 mm
