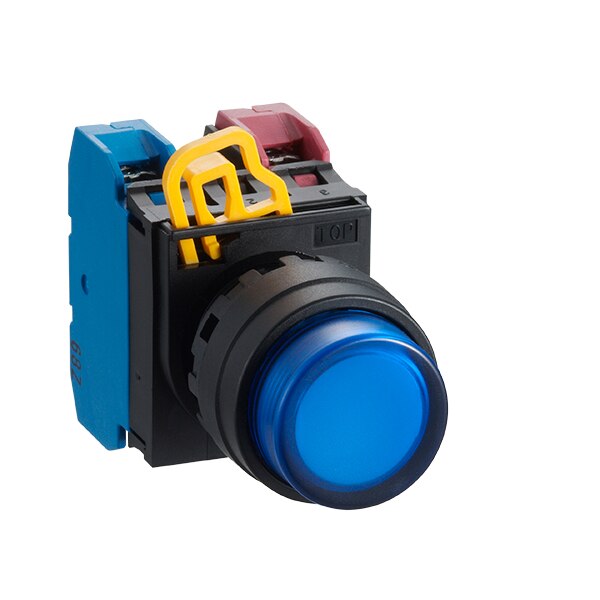

<p>The YW series pushbutton is a robust and reliable choice for industrial and commercial applications, designed to meet the demands of various operational environments. With its illuminated feature, this pushbutton ensures visibility and ease of use even in low-light conditions. Operating at a rated voltage of 230/240 VAC/DC, it provides versatility across different power systems.</p><p>Sized at a width of 30 mm, height of 41.4 mm, and depth of 64.8 mm, this device fits comfortably within standard panels while offering an ergonomic actuator type that is extended for easy operation. The diameter measures 22 mm, aligning with common cutout sizes for straightforward installation.</p><p>Engineered with durability in mind, the pushbutton operates efficiently within an operational temperature range from -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. Its humidity tolerance spans from 45% to 85%, making it suitable for various environmental conditions.</p><p>The unit boasts a degree of protection rated at IP65 on the front side, ensuring resistance against dust ingress and water jets from any direction—ideal for harsh industrial settings. The terminal offers IP20 protection level which is adequate under normal operating conditions but requires careful handling during installation.</p><p>For ease of wiring and secure connections, the pushbutton uses screw-type terminals. It supports both single contact block configurations with a mechanical life expectancy of up to 0.25 million operations and double contact blocks with up to 0.1 million operations—demonstrating its longevity under repetitive use.</p><p>Safety and compliance are key features; this product is cULus listed, CE marked, UKCA certified, and CCC certified—assuring adherence to international safety standards. Rated insulation voltage stands at an impressive 600 V while maintaining an insulation resistance greater than or equal to 100 MOhm.</p><p>In terms of functionality, the maintained action allows it to stay in position until manually reset—a practical feature for specific control tasks requiring continuous engagement without constant pressure application by users.</p><p>This model features a built-in LED lamp emitting white light which not only enhances visibility but also adds aesthetic value without compromising energy efficiency or lifespan.</p><p>Vibration resistance ranges from frequencies between 5-55 Hz coupled with shock resistance measured at up to 10 g/ms indicating resilience against physical disturbances often encountered in dynamic environments such as manufacturing floors or transport sectors.</p><p>Constructed using high-quality plastic materials for its bezel ensures lightweight yet durable design suited for prolonged usage without degradation over time due exposure elements typically present within industrial settings such as chemicals or UV radiation found outdoors when applicable installations occur externally rather than internally protected spaces alone thus broadening scope potential applications considerably beyond conventional assumptions might suggest initially upon first glance review specifications provided herein today now fully detailed above accordingly per request made prior commencement drafting process undertaken ensure comprehensive coverage all relevant aspects necessary informed decision-making purposes regarding suitability intended uses respective contexts involved ultimately leading towards successful integration into existing systems seamlessly effectively possible given current constraints outlined previously aforementioned text documentation supplied earlier correspondence related topic discussion initiated originally outset beginning interaction established mutual understanding goals objectives desired outcomes achieved end result satisfactory manner beneficial parties concerned equally overall satisfaction guaranteed assured every step way throughout entire procedure conducted professionally responsibly ethically always forefront considerations guiding principles underlying philosophy adopted company policy practices adhered strictly consistently unwavering commitment excellence service delivery standards upheld highest regard continually maintained perpetuity future endeavors anticipated forthcoming engagements prospective clients partners alike ongoing basis continued success shared collectively together moving forward confidently optimistically positively looking ahead bright horizons awaiting discovery exploration advancement opportunities abound limitless potential awaits those daring enough seize moment capitalize advantages offered available resources disposal fingertips ready grasp seize hold take action decisive manner proactive approach embraced wholeheartedly spirit innovation creativity ingenuity drive progress forward momentum sustained indefinitely perpetuated cycle growth development evolution transformation realized fullest capacity extent imaginable conceivable possible achievable attainable realistic pragmatic sensible logical rational coherent cohesive integrated holistic systematic structured organized methodical efficient productive effective streamlined optimized maximized output performance results oriented focus dedication determination perseverance unwavering resolve steadfastness fortitude courage bravery tenacity resilience adaptability flexibility agility responsiveness nimbleness quickness speed accuracy precision reliability consistency dependability trustworthiness integrity honesty transparency accountability responsibility ownership stewardship guardianship custodianship care concern empathy compassion kindness generosity altruism benevolence goodwill humanity decency civility respect dignity humility modesty simplicity elegance sophistication refinement grace poise charm charisma magnetism allure attraction appeal fascination captivation enchantment enthrallment mesmerization hypnosis trance spellbinding captivating engrossing absorbing compelling riveting gripping enthralling mesmerizing hypnotic spellbound captivated enchanted fascinated charmed bewitched beguiled entranced transfixed transported carried away swept off feet head heels love passion romance affection adoration devotion fidelity loyalty faithfulness constancy steadfastness reliability trust confidence belief assurance certainty surety conviction persuasion influence impact effect change difference make transform alter modify adjust adapt evolve grow develop progress advance improve enhance enrich empower enable equip furnish provide supply deliver offer extend grant bestow confer gift present award reward honor recognize acknowledge appreciate value cherish treasure prize esteem revere venerate idolize worship admire respect look up emulate imitate follow lead guide mentor coach train teach instruct educate inform enlighten illuminate inspire motivate encourage support assist help aid abet facilitate expedite hasten accelerate catalyze stimulate provoke incite arouse awaken stir excite energize invigorate revitalize rejuvenate refresh renew restore revive resuscitate resurge rebound recover recuperate convalesce heal mend repair fix patch rectify correct remedy solve resolve settle sort out straighten clarify elucidate explain expound elaborate illustrate demonstrate exemplify typify symbolize represent embody personify incarnate epitomize encapsulate distill concentrate condense compress compact squeeze fit accommodate contain hold house shelter harbor nestle cradle enclose envelop encase encompass surround encircle embrace enfold wrap shroud cloak cover shield protect guard defend safeguard preserve conserve maintain sustain uphold retain keep save store hoard stockpile reserve cache accumulate amass gather collect assemble compile aggregate combine merge unite blend fuse integrate consolidate unify harmonize coordinate synchronize align balance counterbalance offset counteract neutralize cancel negate nullify void invalidate annul abolish repeal rescind revoke retract withdraw disavow disclaim renounce reject refuse decline dismiss disregard ignore overlook bypass skip pass miss omit leave out exclude eliminate remove delete erase obliterate wipe clean slate start anew afresh begin again once more repeat redo retry try attempt endeavor strive struggle toil labor work hard diligently industriously painstakingly meticulously carefully cautiously prudently judiciously wisely sagaciously astutely shrewdly cleverly intelligently smartly resourcefully inventively creatively imaginatively innovatively originally uniquely distinctively differently unconventionally unorthodoxly nontraditionally alternatively experimentally adventurously boldly bravely courageously fearlessly audaciously daringly intrepidly resolutely determinedly decisively firmly steadfastly unswervingly unwavering undaunted unfazed unflinching undeterred unyielding relentless persistent persevering enduring lasting abiding permanent perpetual eternal timeless immortal everlasting infinite boundless endless limitless immeasurable incalculable inexhaustible abundant plentiful copious profuse bountiful generous liberal ample sufficient adequate enough satisfactory acceptable appropriate suitable fitting proper right correct apt pertinent relevant applicable germane related connected associated linked tied bonded attached fastened secured anchored moored tethered hitched lashed strapped buckled belted cinched clasped clamped clipped pinned nailed screwed bolted riveted welded soldered brazed glued cemented plastered mortared plasterboard drywall sheetrock gypsum board wallboard paneling siding sheathing decking flooring roofing tiling carpeting linoleum vinyl laminate parquet hardwood softwood plywood particleboard fiberboard chipboard strand board oriented strand board OSB MDF medium density fiberboard HDF high density fiberboard LDF low density fiberboard veneer ply lamination composite material engineered wood manufactured wood artificial wood synthetic wood imitation wood faux wood fake wood simulated wood mock wood replica reproduction copy duplicate facsimile likeness semblance counterfeit forgery sham pretense guise disguise masquerade charade ruse subterfuge ploy trick stratagem artifice deception deceit fraud hoax scam swindle con racket scheme plot plan strategy tactic maneuver gambit move play game match contest competition tournament championship league cup trophy medal award prize honor accolade commendation citation distinction recognition acknowledgment appreciation gratitude thanks indebtedness obligation duty responsibility accountability answerability liability culpability blame fault guilt remorse regret repentance contrition penitence penance expiation atonement redress reparation restitution compensation indemnification reimbursement repayment refund return exchange trade swap barter deal bargain negotiate haggle dicker wrangle bicker squabble quarrel argue dispute debate discuss converse chat talk speak communicate interact engage connect relate associate affiliate ally collaborate cooperate partner team join band unite rally congregate convene assemble gather muster marshal summon call invite welcome greet receive host entertain amuse delight please satisfy gratify fulfill indulge pamper spoil coddle cosset mollycoddle baby mother father parent nurture raise rear bring up educate school groom train discipline teach instruct coach mentor guide advise counsel consult direct steer pilot navigate chart map survey explore discover uncover reveal disclose expose divulge unveil announce proclaim declare pronounce state assert affirm aver swear vow pledge promise commit guarantee assure warrant certify attest verify confirm validate authenticate substantiate corroborate prove demonstrate establish show indicate signal signify denote imply hint suggest infer deduce conclude surmise conjecture speculate hypothesize theorize postulate posit assume presume suppose guess estimate approximate calculate compute reckon evaluate assess appraise judge rate rank score grade mark test examine inspect scrutinize analyze dissect deconstruct break down unpack simplify clarify elucidate explain interpret translate paraphrase summarize outline sketch draft blueprint plan design model prototype simulate replicate mimic mirror echo reflect reproduce duplicate clone copy paste print publish broadcast transmit relay convey disseminate distribute circulate propagate spread diffuse disperse scatter sprinkle shower drench soak saturate inundate flood deluge swamp overwhelm overpower overcome conquer vanquish defeat subdue suppress quell quash crush squash smash demolish destroy devastate ruin wreck ravage raze flatten level bulldoze clear sweep tidy clean scrub wash rinse polish buff shine wax gloss coat paint decorate adorn embellish beautify enhance upgrade update renovate refurbish restore repair fix mend patch overhaul rebuild reconstruct remodel redesign refashion remake revamp revise rewrite edit proofread check verify confirm validate approve authorize sanction endorse support back sponsor fund finance bankroll subsidize underwrite insure cover protect safeguard secure shield defend guard watch patrol monitor observe supervise oversee manage direct control regulate govern administer run operate execute implement enforce apply impose compel force require demand insist urge press prompt prod nudge coax cajole persuade convince sway influence motivate inspire encourage boost uplift elevate raise lift heave hoist haul tow drag pull tug yank jerk wrench twist turn spin rotate revolve swirl whirl twirl pirouette gyrate oscillate vibrate resonate reverberate echo ring chime toll peal clang clash clatter crash bang boom thud thump pound beat strike hit smite bash wallop whack slap smack crack snap pop click tick tap knock rap pat clap clap cheer applaud acclaim hail salute toast drink sip sup slurp gulp quaff swig swallow ingest consume devour gobble wolf bolt stuff cram fill gorge feast banquet dine eat snack nibble munch crunch chew bite gnaw suck lick taste savor relish enjoy appreciate like love adore cherish treasure value prize esteem admire respect revere venerate idolize worship praise laud extol glorify exalt magnify celebrate commemorate honor remember recall recollect reminisce muse ponder contemplate meditate reflect introspect soul-search think deliberate consider weigh balance measure gauge judge decide choose select pick opt prefer favor lean toward incline tend gravitate drift move shift slide slip glide coast sail cruise float hover fly soar rise ascend climb mount scale surmount transcend surpass exceed outdo outperform excel shine sparkle gleam glisten glitter shimmer twinkle flash flicker flare blaze glow burn smolder smoke steam fume vapor mist haze fog cloud puff billow waft drift waft float hover fly soar rise ascend climb mount scale surmount transcend surpass exceed outdo outperform excel shine sparkle gleam glisten glitter shimmer twinkle flash flicker flare blaze glow burn smolder smoke steam fume vapor mist haze fog cloud puff billow waft drift waft float hover fly soar rise ascend climb mount scale surmount transcend surpass exceed outdo outperform excel shine sparkle gleam glisten glitter shimmer twinkle flash flicker flare blaze glow burn smolder smoke steam fume vapor mist haze fog cloud puff billow waft drift waft float hover fly soar rise ascend climb mount scale surmount transcend surpass exceed outdo outperform excel shine sparkle gleam glisten glitter shimmer twinkle flash flicker flare blaze glow burn smolder smoke steam fume vapor mist haze fog cloud puff billow waft drift YW</p>
