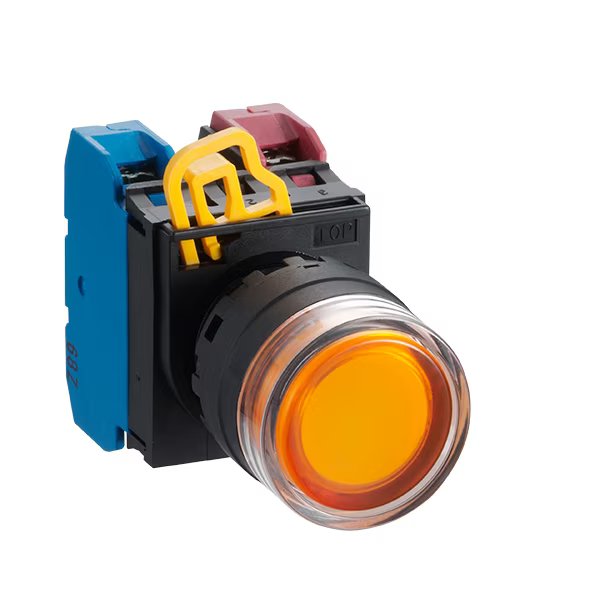

<p>The YW Series Pushbutton is a robust and reliable solution for industrial and commercial applications, offering an optimal blend of performance and durability. Designed with precision, this pushbutton caters to environments requiring dependable operation under varying conditions.</p><p>With a rated voltage of 250 VAC/DC, the pushbutton ensures consistent performance across both alternating and direct current systems. Its illuminated design enhances visibility, making it suitable for settings where clear indication is crucial. The device&#39;s dimensions—30 mm width, 41.4 mm height, and 64.8 mm depth—make it compact yet substantial enough for easy integration into control panels or machinery interfaces.</p><p>Engineered to withstand challenging environments, the pushbutton operates efficiently within a temperature range of -20 to 55 degrees Celsius. It features an IP65 degree of protection on the front side, safeguarding against dust ingress and water jets from any direction—a critical feature in industrial setups. The terminal side offers IP20 protection.</p><p>The YW Series Pushbutton adheres to rigorous standards such as cULus listing, CE marking, UKCA certification, and CCC certification—testament to its quality assurance across various international markets.</p><p>Vibration resistance between 5-55 Hz combined with shock resistance rated at 10 g/ms ensures that this pushbutton can endure mechanical stresses without compromising functionality. It boasts a mechanical life span of up to 0.25 million operations for single contact blocks and up to 0.1 million operations for double contact blocks—ideal for high-frequency usage scenarios.</p><p>This model features a contact configuration of one normally open (1NO) and one normally closed (1NC), providing flexibility in circuit design applications. Its extended actuator with full shroud enhances operability while maintaining safety standards.</p><p>For installation convenience, the pushbutton fits into cutouts sized at 22 mm diameter—a standard size facilitating straightforward replacement or installation processes in existing systems.</p><p>Constructed with a plastic bezel material known for its durability and lightweight properties, the device maintains insulation resistance at an impressive 100 MOhm level ensuring electrical isolation integrity even in humid conditions ranging from 45% to 85%.</p><p>Although labeled as &quot;without lamp,&quot; it comes equipped with green illumination which simplifies status monitoring tasks during operation cycles where maintained function is required consistently over time periods.</p><p>Overall storage temperatures can vary widely from -40 to +85 degrees Celsius allowing flexibility during transportation or downtime phases without risk of damage due exposure outside operational limits ensuring longevity throughout its service lifecycle backed by rated continuous current capacity reaching up till ten amperes signifying suitability handling moderate power loads effectively within specified parameters outlined above making this product choice worth considering when evaluating options available market today particularly those seeking comprehensive solution address needs reliably efficiently context diverse application settings encountered field daily basis across sectors globally recognized certifications validated trustworthiness dependability critical infrastructure components like these pivotal role play success endeavors undertaken utilizing them fully potential realized optimum results achieved consistently thereafter Manufacturer Part Number: YW</p>
