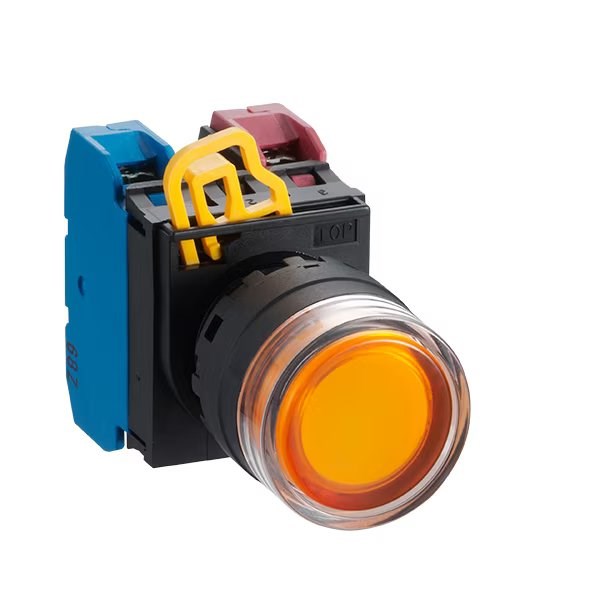

<p>The YW Series pushbutton is a robust and reliable choice for industrial and commercial applications, designed to meet the demanding needs of technical environments. With its illuminated design, this pushbutton stands out in control panels, offering both functionality and visibility.</p><p>Operating at a rated voltage of 250 VAC/DC, the pushbutton is suitable for various electrical systems. Its dimensions are compact yet functional with a width of 30 mm, height of 41.4 mm, and depth of 64.8 mm, making it an ideal fit for space-constrained setups. The actuator type is extended with a full shroud, providing ease of use while ensuring safety.</p><p>This pushbutton operates effectively within an operational temperature range from -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. These features ensure performance reliability across diverse environmental conditions commonly encountered in Australia.</p><p>The device boasts an IP65 degree of protection on the front side and IP20 at the terminal level, safeguarding against dust ingress and water jets from any direction while maintaining user safety during maintenance or installation through screw-type terminals.</p><p>For those concerned about compliance standards, this pushbutton does not disappoint—it&#39;s cULus listed, CE marked, UKCA certified, and CCC certified. Such certifications confirm adherence to international quality and safety standards.</p><p>With vibration resistance ranging from 5-55 Hz and shock resistance up to 10 g/ms, this product is engineered to withstand mechanical stresses typical in industrial settings. The rated insulation voltage is set at a robust 600 V with insulation resistance measured at 100 MOhm.</p><p>The contact configuration includes one normally open (1NO) plus one normally closed (1NC), supporting versatile circuit designs with maintained function operation that ensures stability over time. It offers a mechanical life expectancy of up to 0.25 million operations for single contact blocks or up to 0.1 million operations if using double contact blocks—indicative of durability under frequent usage scenarios.</p><p>In terms of aesthetics and usability features—the lamp color is red which enhances visibility though it&#39;s specified without an integrated lamp type itself; however it supports illumination as needed based on application requirements.</p><p>Constructed with plastic bezel material for durability without compromising on weight or cost efficiency; all these specifications are neatly wrapped into a cutout size diameter fitting precisely at standard industry sizes measuring exactly &#216;22mm allowing seamless integration into existing systems or new installations alike ensuring compatibility across projects large &amp; small scale endeavors consistently delivering optimal results every time you deploy them!</p><p>Rated continuous current capacity stands solidly strong handling loads efficiently maxing out comfortably around ten amperes giving confidence knowing your system will handle demands placed upon it reliably day after day!</p>
