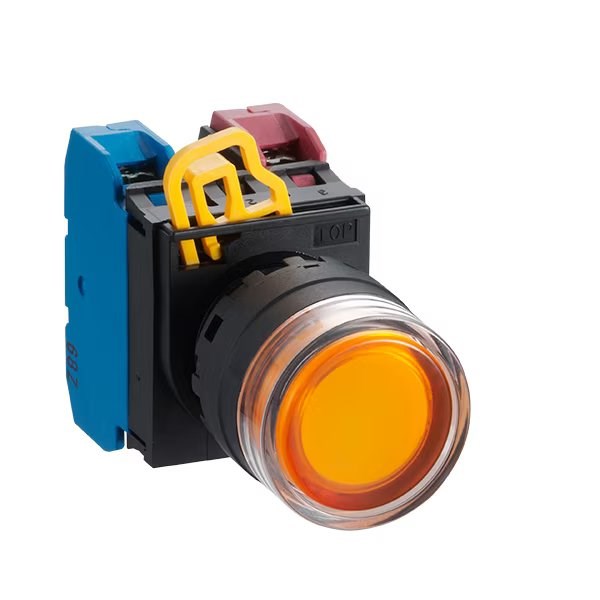

<p>The YW Series pushbutton is a robust and reliable solution tailored for industrial and commercial applications. With its illuminated design, this pushbutton offers enhanced visibility, making it ideal for environments where clarity is essential. Operating at a rated voltage of 24 VAC/DC, it ensures consistent performance across various electrical systems.</p><p>Measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, the compact dimensions of this pushbutton allow for easy integration into control panels without sacrificing valuable space. The actuator type features an extended design with a full shroud, providing both protection and ease of use.</p><p>Designed to withstand challenging conditions, this device operates efficiently within temperatures ranging from -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. Its humidity tolerance spans from 45% to 85%, ensuring reliability even in varied climates.</p><p>The IP65 front degree of protection makes it resistant to dust ingress and low-pressure water jets from any direction, while the IP20 rating at the terminal end provides basic protection against accidental contact. This dual-level protection ensures durability in demanding settings.</p><p>In terms of compliance, the YW Series pushbutton meets rigorous standards being cULus listed, CE Marked, UKCA Certified, and CCC Certified. These certifications affirm its safety and quality across multiple regions.</p><p>For those concerned with mechanical resilience, the unit boasts impressive vibration resistance (5-55 Hz) and shock resistance (10 g/ms). It promises longevity with a mechanical life expectancy of up to 0.25 million operations for single contact blocks or up to 0.1 million operations for double contact blocks.</p><p>Electrical specifications include a rated insulation voltage of 600 V and an insulation resistance exceeding 100 MOhm. The device supports a rated continuous current of up to 10 A—suitable for most standard applications.</p><p>The built-in LED lamp emits an amber glow that aligns well with industry-standard signaling practices; its maintained function further enhances operational stability by keeping circuits engaged until manually reset or disengaged.</p><p>Installation is straightforward thanks to screw-type terminals that facilitate secure connections while accommodating typical wiring setups found in industrial environments. Additionally, it fits neatly into cutouts sized at a standard diameter of 22 mm—a common specification ensuring compatibility with existing systems or new installations requiring uniformity across components.</p><p>Overall, the YW Series pushbutton combines practicality with durability—offering users dependable operation backed by comprehensive certifications suitable for diverse applications within Australia’s technical landscape.</p>
