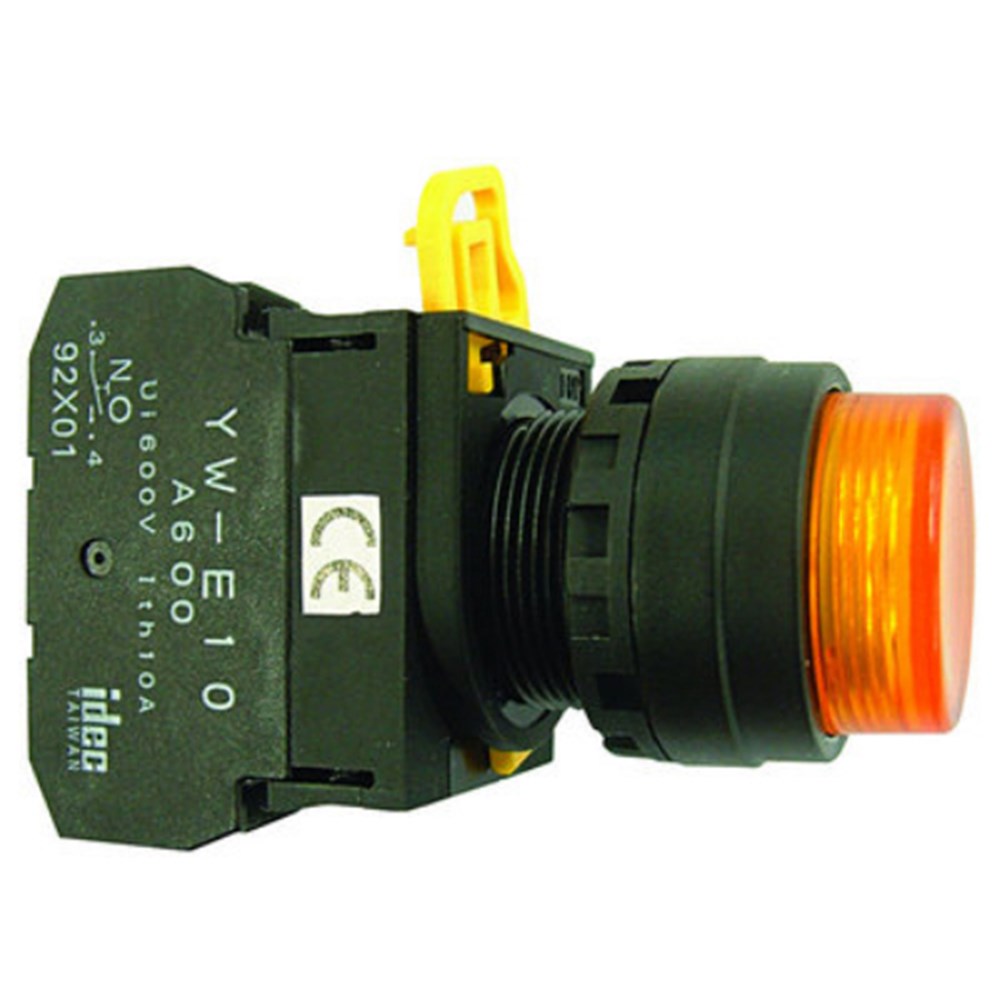

<p>The YW series pushbutton is a versatile and reliable solution designed for industrial and commercial applications. With its robust design, this illuminated pushbutton is suitable for environments requiring dependable performance under various conditions.</p><p>Operating at a rated voltage of 24 VAC/DC, the pushbutton ensures consistent functionality. Its dimensions—30 mm in width, 41.4 mm in height, and 64.8 mm in depth—make it compact yet effective for panel installations. The device&#39;s actuator features an extended design with an amber incandescent lamp, providing clear visibility during operation.</p><p>The pushbutton&#39;s mechanical life spans up to 5 million operations with a single contact block and 1 million operations with a double contact block, ensuring longevity and durability in high-use settings. It supports a momentary function with a single normally open (1NO) contact configuration made from silver material, which enhances conductivity and reliability.</p><p>Engineered to withstand challenging environments, the pushbutton operates efficiently within temperatures ranging from -20 to 55 degrees Celsius while storage capabilities extend from -40 to 85 degrees Celsius. Humidity tolerance ranges between 45-85%, making it suitable for diverse climatic conditions.</p><p>Safety and protection are prioritized through its IP65-rated front face protection against dust and water ingress while maintaining IP20 protection at the terminal level. The screw-type terminals ensure secure connections during installation.</p><p>Certified by cULus, CE Marked, UKCA Certified, and CCC Certified standards, this product meets global safety requirements. Moreover, it offers excellent vibration resistance of 5-55 Hz and shock resistance of up to 10 g/ms.</p><p>With an insulation resistance of 100 MOhm and rated continuous current capacity of up to 10 A, this pushbutton provides reliable electrical performance across various applications. The cutout size measures at a standard diameter of 22 mm fitting most equipment panels seamlessly.</p><p>Constructed with durable plastic bezel material, the YW series pushbuttons are built for resilience without compromising on aesthetic appeal or functionality. Designed not just for efficiency but also ease-of-use; these devices are ideal additions where reliability is paramount amidst rigorous operational demands.</p>
