Specifications

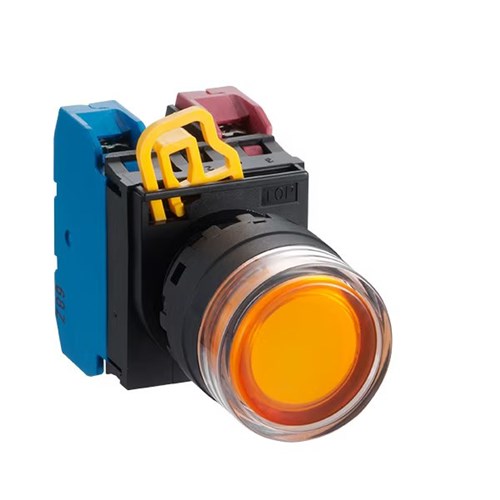

Product Type	Pushbutton
Brand	IDEC
Series	YW
No. of N/C Contacts	1
No. of N/O Contacts	0
Terminal Type	Finger Safe Spring Terminal
Contact Block Thermal Current (Ith)	10 A
Contact Block Rated Current (Ie)	AC-12: (380 V) 2 A, (240 V) 6 A, (120 V) 10 A, (24 V) 10 AAC-15: (380 V) 1.9 A, (240 V) 3 A, (120 V) 6 A, (24 V) 10 ADC-12: (24 V) 8 A, (120 V) 2.2 A, (240 V) 1.1 ADC-13: (24 V) 4 A, (120 V) 1.1 A, (240 V) 0.55 A
Actuator Type	Extended w/ shroud
Bezel Material	Plastic
Lamp Colour	Green
Lens Colour	Green
Switching Function	Momentary
IP Rating	IP65
