Specifications

Product Type	Miniature Fuse Link
Brand	IPD
Series	AABC
Application	Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)
Breaking Capacity	35 kA at 250 V AC
Rated Current	20 A
Rated Voltage	250 V AC / 125 V DC
Speed Class	Fast-Acting
Body Style	Cylindrical Tube
Connection/Termination	Flush ends
Fuse Holder	ATB34I
Material	Body: ceramic, End cap: nickel-plated brass
Size Code	3AG
Length	31.75 mm
Weight	0.002 kg (Approx.)
Width	Ø 6.35 mm
Standards and Approvals	CSA Certified – Class No: 1422-01 & 1422-30 (File 53787)

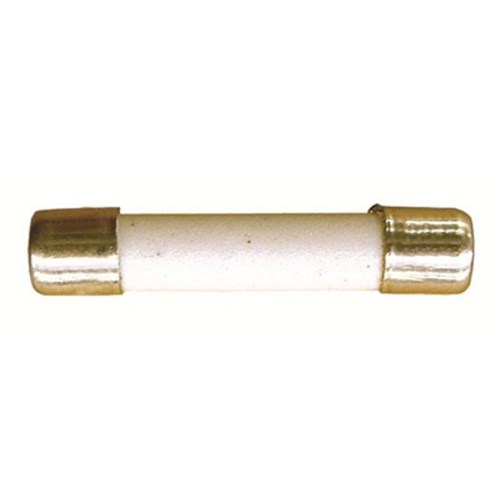

IPD AABC20 Miniature Fuse Link 20A 250VAC 3AG Fuse 6.3mm Dia x 32mm L 400-1000A Interrupt Ceramic Fast Acting
