Specifications

Product Type	Miniature Fuse Link
Brand	IPD
Series	AAGC
Application	Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)
Rated Current	750 mA
Rated Voltage	250 V AC/ 32 V DC
Speed Class	Fast-Acting
Body Style	Cylindrical Tube
Connection/Termination	Flush ends
Fuse Holder	ATB34I
Material	Body: glass, End cap: nickel-plated brass
Size Code	3AG
Length	32 mm
Weight	0.002 kg (Approx.)
Width	Ø 6.3 mm
Standards and Approvals	CE Marked, ROHS Compliant

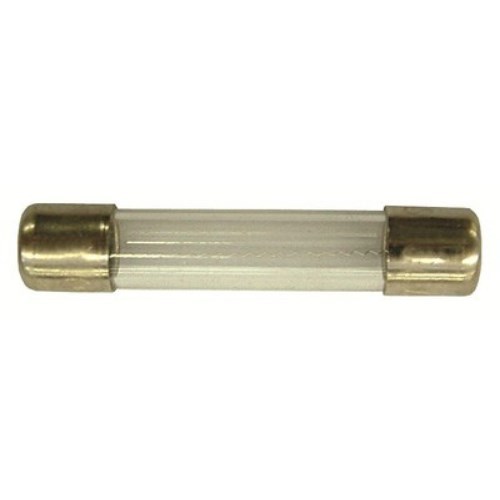

IPD AAGC750MA Miniature Fuse Link 0.75A 250VAC Fast Acting Glass 3AG Fuse 6.3mmDiax32mm L 35-10000A Interrupt
