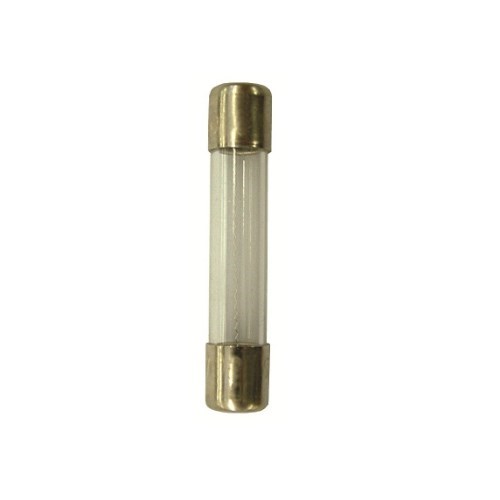

IPD AGDB630MA Miniature Fuse Link 0.63A 250VAC Fast Acting Glass M205 Fuse 5mmDiax20mm L 35A Interrupt

Product Code: AGDB630MA

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Miniature Fuse Link
Brand IPD
Series AGDB
Application Electronic Circuits
Breaking Capacity 35 kA at 250 V AC
Rated Current 630 mA
Rated Voltage 250 V AC
Speed Class Fast-Acting
Body Style Cylindrical Tube
Material Body: glass, End cap: nickel-plated brass
Length 20 mm
Weight 0.83 g
Width Ø 5 mm
Standards and Approvals IEC 60127-2/2,CE Marked, ROHS Compliant, CCC Marked

Documents

IPD Product Catalogue V17
