Specifications

Product Type	Miniature cartridge fuse
Brand	IPD
Series	AMDL
Application	Electronic circuit protection where inrush currents may be present
Rated Current	1.25 A
Rated Frequency	50/60 Hz
Rated Voltage	250 V AC
Speed Class	Time delay / slow blow
Body Style	Cylindrical cartridge
Connection/Termination	Ferrule end caps
Indicators	without indicator
Material	Glass tube; nickel-plated brass end caps
Mounting	Fuse holder / clips
Size Code	3AB / 3AG, 6.3 x 32
Length	31.75 mm
Weight	0.002 kg
Width	Ø 6.35 mm
Standards and Approvals	UL 248-14

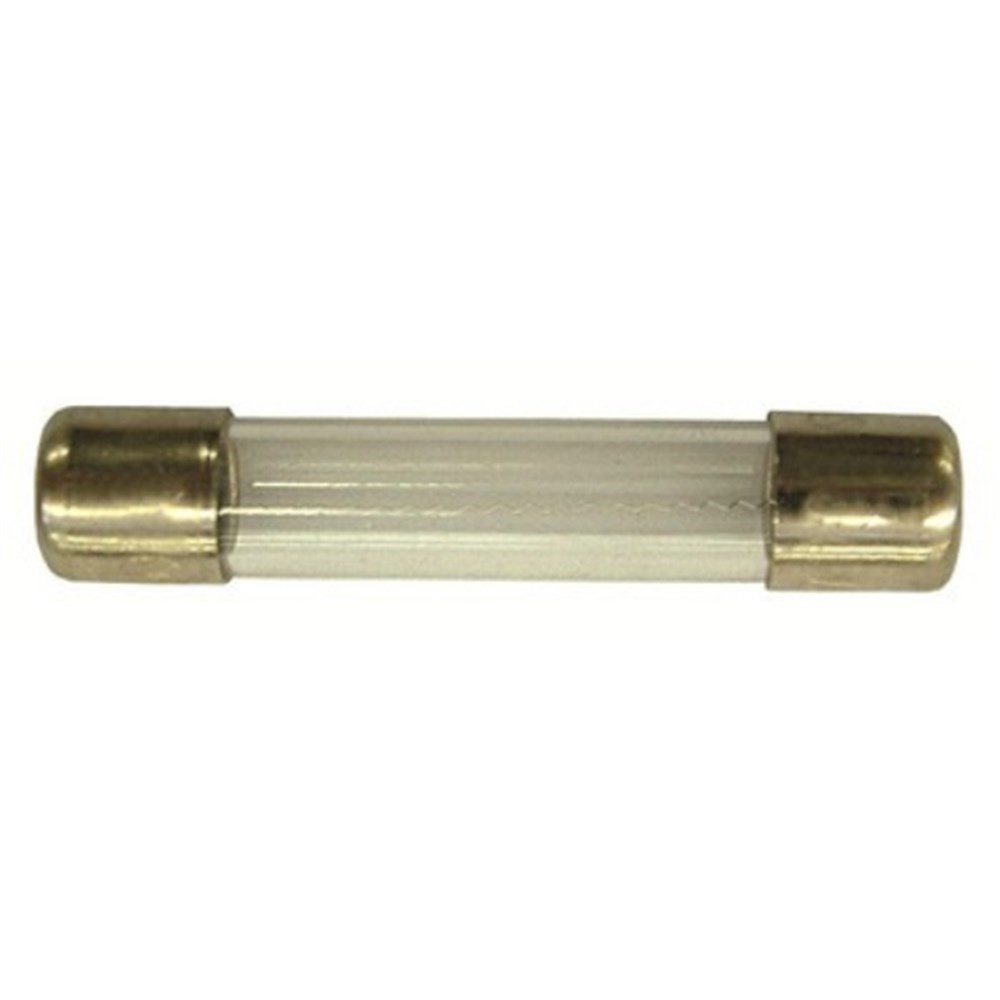

IPD AMDL1.25 Miniature Fuse Link 1.25A 250VAC Slow Blow Glass 3AG Fuse 6.3mmDiax32mm L 100-10000A Interrupt
