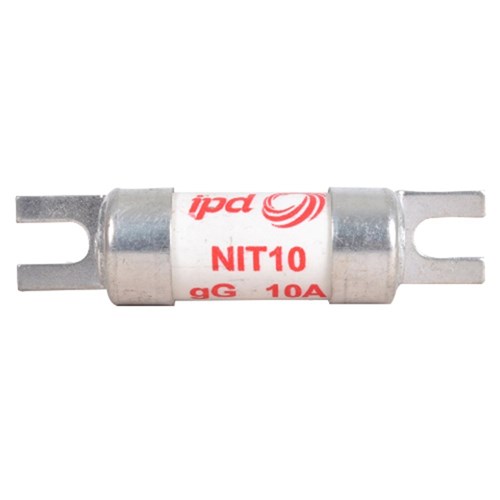

IPD NIT10 Fuse Link 10A 550VAC Offset Slotted Bolted Tag BS88/A1 Fuse 80kA 44.5mm gG

Product Code: NIT10

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Offset tag fuse
Brand IPD
Series NIT Series
Application Cable & equipment protection
Utilization Category gG
Breaking Capacity 80 kA
Fuse Class BS88/A1 fuse
Rated Current 10 A
Rated Voltage 550 V AC
Body Style Offset slotted bolted tag
Fixing Centres 44.5 mm
Fuse Holder RS20, RSM32
Mounting Type Bolted / screwed tag fuse
Shape Offset Slotted Bolted Tag
Depth 56 mm
Height 14.5 mm
Length 44.5 mm
Weight 0.0159 kg
Width 13.5 mm
Body Diameter 14.1 mm
Size A1
Operating Temperature 40 deg C
Standards and Approvals IEC 60269 / BS88

Documents

IPD Product Catalogue V17

CAD Blocks & Dimensions
