Specifications

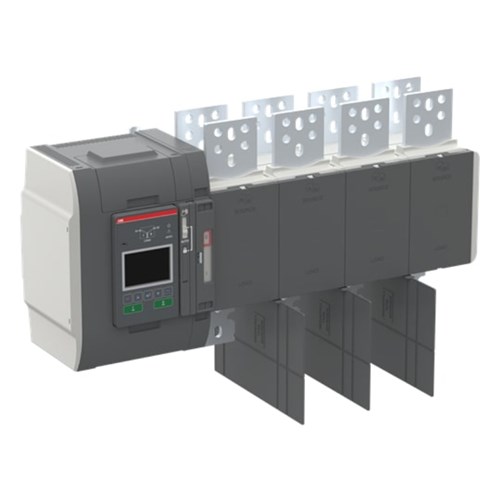

Product Type	Automatic Transfer Switch
Brand	ABB
Series	TruONE
Application	Utilities, manufacturing, water and wastewater
Max. Rated Operation AC Voltage (Ue)	480 V
Pole Type	Late-Break, Early-Make
Position of Line Terminals	Supplies on Top - Load on Bottom
Rated Current (In)	200 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	Main Circuit 200...480 V AC
Rated Short Time Withstand Current (Icw)	for 0.1 s 65 kiloampere rms
Power Loss	at Rated Operating Conditions per Pole 23 W Total 69 W
Rated Current	1600 A
Rated Frequency	50-60 Hz
Rated Voltage	200-480 VAC
Special Functions	Open style
Transition Type	Open
No. of Poles	4
Controller Type	Level 3 (LCD)
Colour	Grey
Material	Mild Steel
Padlock Locking	Yes
Depth	212 mm
Height	359 mm
Weight	36.61 kg
Width	712 mm
Operating Temperature	-25 to +70 °C
IP Rating	IP21
Standards and Approvals	UL1008 / IEC60947-6-1

IPD OXA1200U3O3QTEG Mild Steel Enclosed 3-P 1600A 200-480VAC Mild Steel IP65
