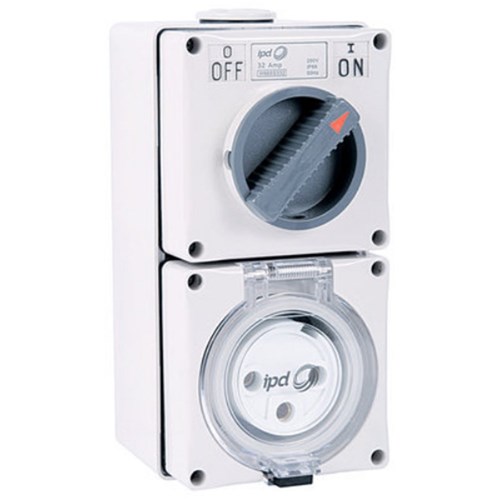

IPD W66SS332 Switched Outlet 3-P 3 Round-Pin 1-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66SS332

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Switched Socket
Brand IPD
Back Box Included Yes
Cable Cross Section 16 sq-mm
Cover Style Light Grey
Degree of Protection IP66
Depth 110 mm
Gland Entries (1) M32, (2) M25
Height 197 mm
Material Polycarbonate
Number of Pins 3
Number of Poles 3
Phase 1
Pin Type Round
Rated Current 32 A
Rated Voltage 500 VAC/VDC
Standards and Approvals IEC947-3/AS3133/AS3123
Width 101 mm
