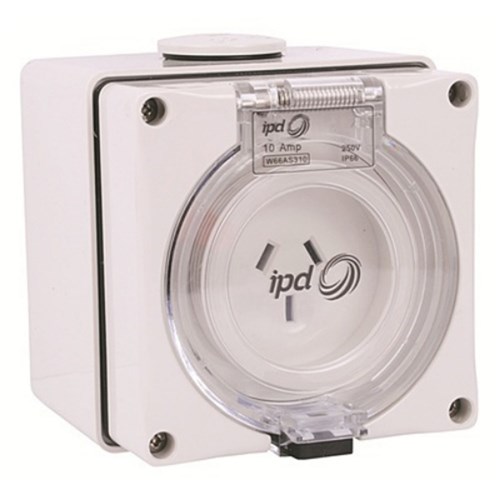

IPD W66US310 Unswitched Socket 3 Flat-Pin 1-Ph 10A 250VAC/DC IP66 Polycarbonate

Product Code: W66US310

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Unswitched Socket
Brand IPD
No. of Phases 1
Rated Current 10 A
Rated Voltage 250 VAC/VDC
Back Box Included Yes
Cable Cross Section 6 sq-mm
Colour Light Grey
Cover Style Light Grey
Gland Entries (1) M25, (2) M20
Material Polycarbonate
No. of Pins 3
Pin Type Flat
Depth 91 mm
Height 101 mm
Width 101 mm
IP Rating IP66
Standards and Approvals AS3112
