Specifications

Product Type	DIN HV Back-up fuse
Brand	Mersen
Application	HV Transformer protection
Breaking Capacity	63 kA
Rated Current	100 A
Rated Voltage	6 / 12 kV
Body Style	Cylindrical
Connection/Termination	DIN clip-in (end-cap type)
Indicators	Medium striker 80 N / 30 mm
Material	Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Length	442 mm
Weight	3.1 kg (Approx.)
Width	Ø 56 mm
Standards and Approvals	IEC 60282-1, VDE 0670 part 4, DIN 43625

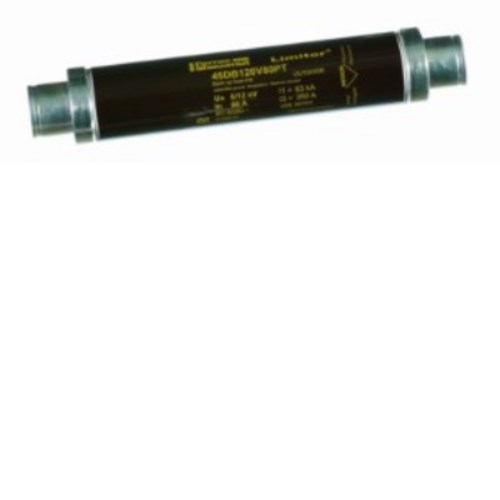

Mersen 45DB120V100P Fuse Link 100A 12 kV 78mm Dia x 292mm L 63kA Medium Striker Striker 80N
