Specifications

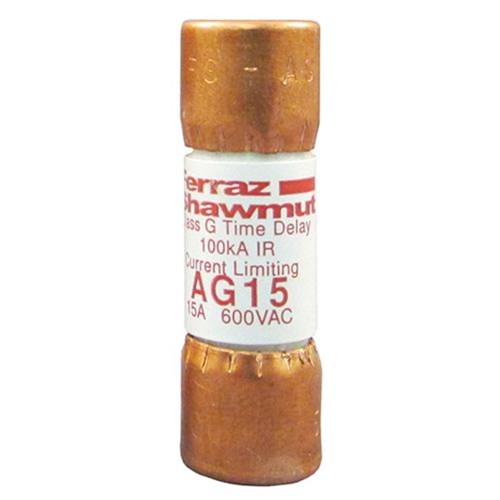

Product Type	Fuse Link
Brand	Mersen
Series	AG
Breaking Capacity	100 kA
Rated Current	15 A
Rated Voltage	600 V AC
Speed Class	Time Delay
Body Style	Cylindrical
Material	Body: Fiberglass, End cap: tin plated copper
Size Code	AG
Length	33.3 mm
Weight	0.0073 kg (Approx.)
Width	Ø 10.3 mm
Standards and Approvals	CSA Certified-C22.2 No. 248.5
