Specifications

Product Type	Fuse Link
Brand	Mersen
Series	AJT
Application	Protection at all levels of power distribution
Breaking Capacity	300 kA
Rated Current	100 A
Rated Voltage	600 V AC / 400 V DC
Speed Class	Time Delay/Class J
Body Style	Bolted Tag
Fixing Centres	92 mm
Material	Body: GMG, Terminal:Tin-Plated Copper
Length	117.6 mm
Weight	0.10 kg (Approx.)
Width	Ø 27 mm
Standards and Approvals	IEC 60269-2-1

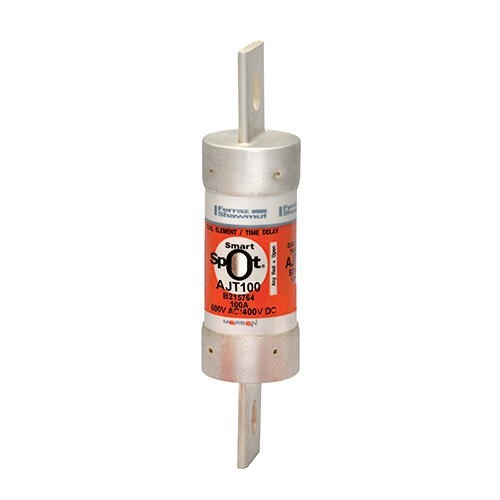

Mersen AJT100 Power Fuse 100A 600/400VAC/DC Class J 27mm Dia x 117.6mm L Blade Terminal Class J 200kA
