Specifications

Product Type	Time Delay Fuse
Brand	MERSEN
Body Material	GMG
Body Size	54 mm Dia x 181.1 mm L
Body Style	Bolted Tag
Breaking Capacity	200 kA
Connection/Terminal Material	Brass
Fuse Class	Class J
Insulation Material	GMG
Mounting Type	Clip, Bolted
Rated Current	225 A
Rated Frequency	50/60 Hz
Rated Voltage	600/500 VAC/VDC
Terminal Type	Blade
Weight	0.8119 kg

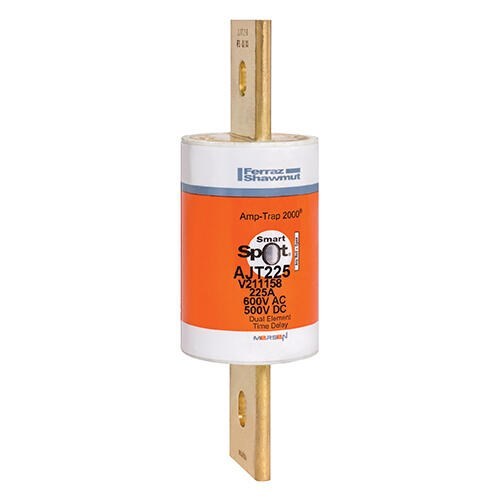

Mersen AJT225 Power Fuse 225A 600/500VAC/DC Class J 54mm Dia x 181.1mm L Blade Terminal Class J 200kA
